403-BBHI Technical Specifications

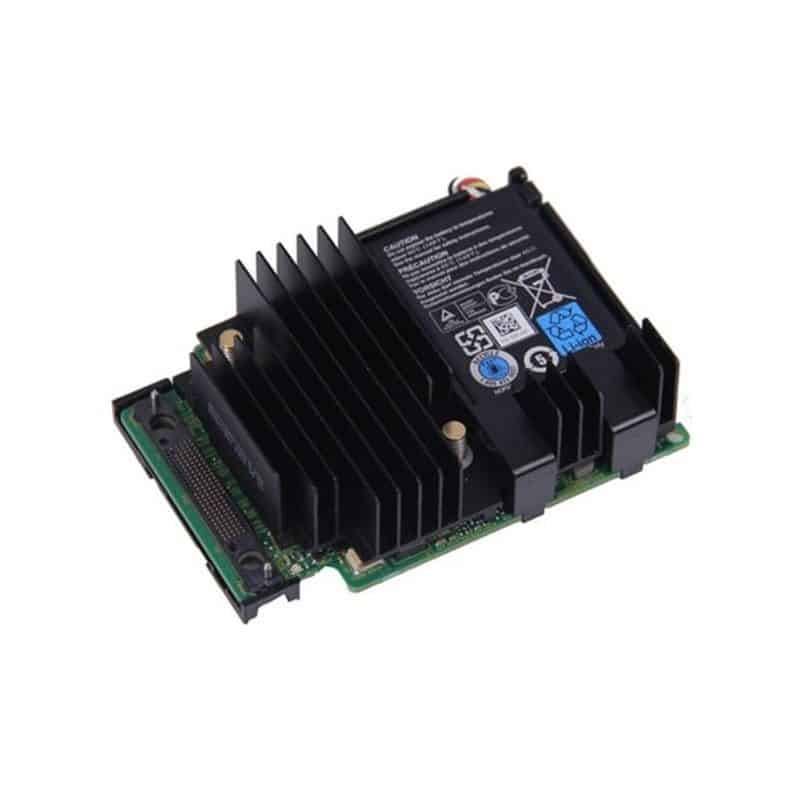

DELL Perc H730p 8channel Pci-express 3.0 Sas 12gbs / Sata 6gbs Mini Mono Raid Controller With 2gb Nv Flash Backed Cache
Part No: 403-bbhi
Manufacturer: Dell
Product Key Features
Device Type : Storage Controller (raid) – Plug-in Card
Bus Type : Pcie 3.0 X8
Interface : Sata 6gb/s / Sas 12gb/s
Data Transfer Rate : 1.2 Gbps
Buffer Size : 2gb
Supported Devices : Disk Array (raid)
Channel Qty : 8
Max Storage Devices Qty : 255
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
System Requirements : Microsoft Windows Server 2008 R2 Sp1, Suse Linux Enterprise Server 10 Sp4, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Suse Linux Enterprise Server 11 Sp3, Red Hat Enterprise Linux 6.5
Designed For : Poweredge R430, R530, R630, R730, R730xd.
