405-AADY Technical Specifications

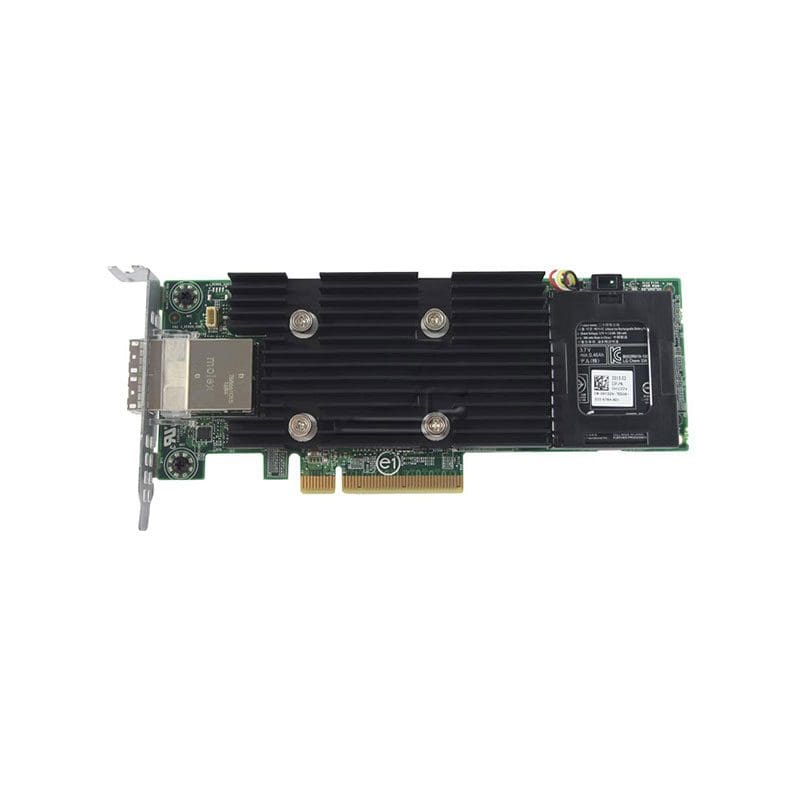

Dell Perc H830 2GB Cache SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 Low Profile RAID Storage Controller Card
Manufacturer Part Number 405-AADY
Brand Name Dell
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
JBOD
Data Backup Type NV Cache
Memory
Cache Memory 2 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8643
Physical Characteristics
Height 2.5″
Depth 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported Linux
PC
