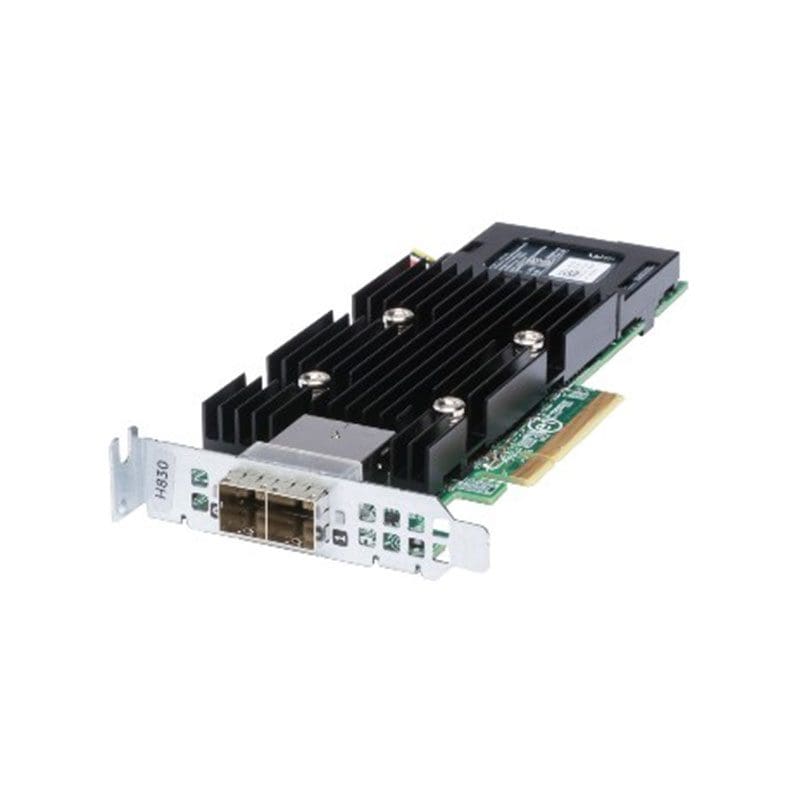

405-AAEZ Dell PERC SAS 12Gbps PCI Express RAID Controller Card

405-AAEZ Technical Specifications

Dell PERC H830 2GB NV Cache SAS 12Gbps PCI Express 3.0 x8 RAID Controller Card

Part Number : 405-aaez
Manufacturer : Dell
Technical Information :
Device Type : Storage Controller (raid) – Plug-in Card – Low Profile
Host Bus : Pcie 3.0 X8
Interface : Sas 12gb/s
Data Transfer Rate : 1.2 Gbps
Buffer Size : 2gb Nv
Supported Devices : Hard Drive, Disk Array (raid), Solid State Drive
Channel Qty : 8
Sas Connectors : 2×4 External
Max Storage Devices Qty : 255
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Jbod, Raid 60
