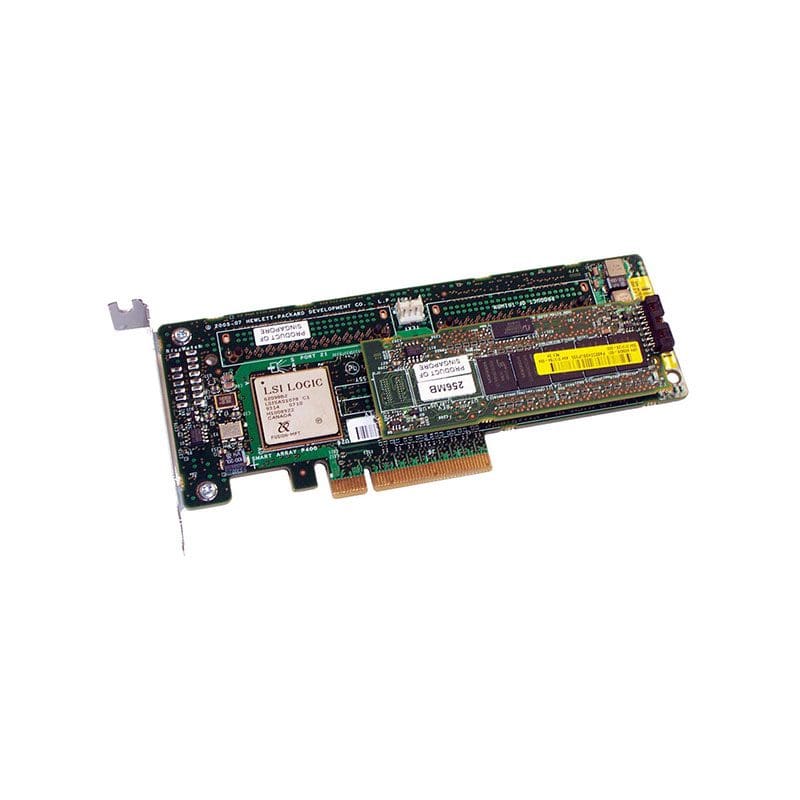

405132-B21 HP Smart Array SAS 3Gbps PCI Express RAID Controller

405132-B21 Technical Specifications

HP Smart Array P400 256MB Cache SAS 3Gbps / SATA 1.5Gbps 8-Channel PCI Express x8 0/1/5/10 RAID Controller Card

Manufacturer Part Number 405132-B21
Brand Name HP
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
RAID Supported Yes
RAID Levels 0
1+0
5
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8484
Physical Characteristics
Height 2.8″
Width 6.6″
Thickness 0.7″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
