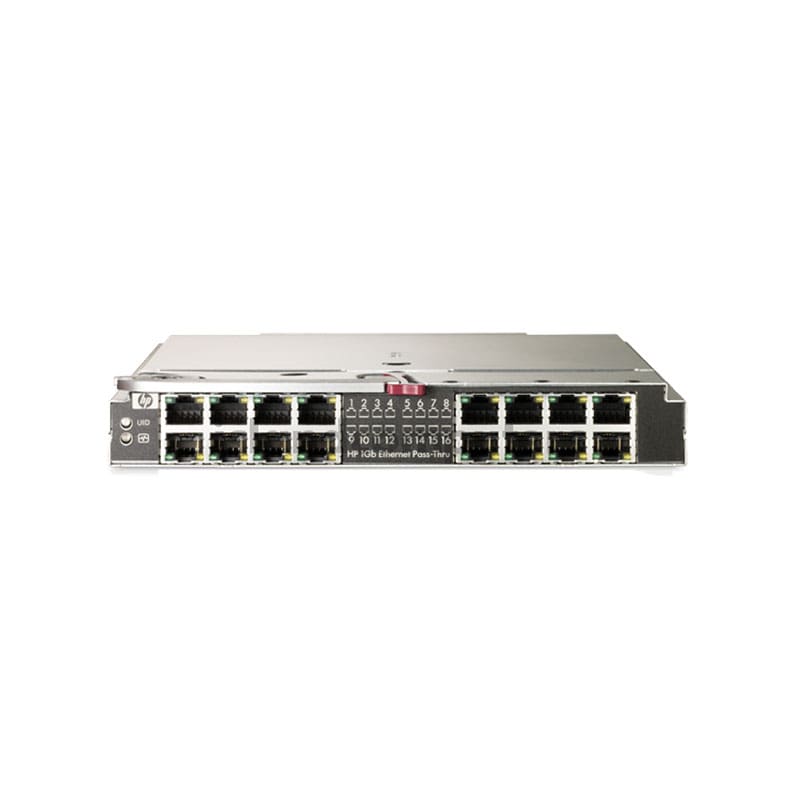

406740-B21 HPE 1Gb Ethernet Pass-Thru Module Expansion module Gigabit Ethernet x 1
406740-B21 Overview
This HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HP 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1:1 non-switched, non-blocking path between the server and the network.
$45
406740-B21 Technical Specifications
HPE 1Gb Ethernet Pass-Thru Module Expansion module Gigabit Ethernet x 1
Brand: HPE
Product Line: HPE
Model: 1Gb Ethernet Pass-Thru Module
Manufacturer: Hewlett-Packard
Network & Communication
Cable Type: Ethernet 1000Base-TX
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Data Transfer Rate: 1 GBps
Features: Full duplex mode
Form Factor: Plug-in module
Product Type: Expansion module
Expansion Slots
Compatible Slots Required: 1 x expansion slot
Connectivity
Interface Provided: 16 x 1000Base-TX – RJ-45
Port Quantity: 16
Network & Adapter Ports: 10/100/1000
Technical Information
Max Operating Temperature: 95 degree Fahrenheit
Min Operating Temperature: 50 degree Fahrenheit
Operating Humidity: 5 – 95%
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 10.6 inch
Width: 36.5 inch
Depth: 11 inch
