40K1643 Technical Specifications

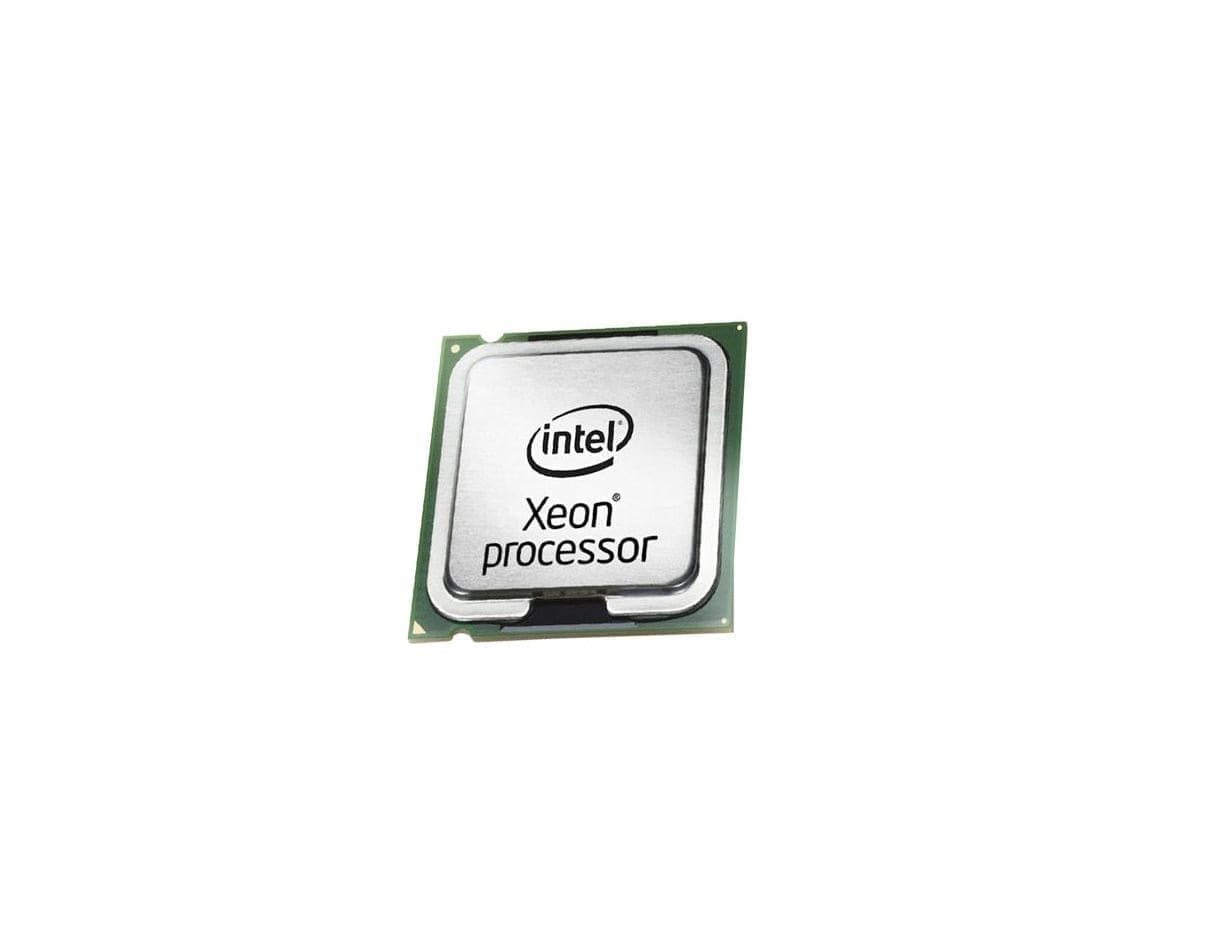

IBM 2.80GHz 800MHz FSB 4MB L2 Cache Intel Xeon Dual Core Processor Upgrade
Brand Intel
Part No. 40K1643
Processor Type Server
Series Xeon D Processor
Processor Code Name Paxville
Core Stepping A0
Manufacturing Technology 90 nm
CPU ID String 0F48h
# of Cores 2
# of Threads 4
Clock Speed 2.80 GHz
L2 Cache Size 4 MB
Front Side Bus / QuickPath Interconnect 800 MHz
Thermal Power 135 Watts
VID Voltage Range 1.25V – 1.4V
CPU Socket Type PPGA604
