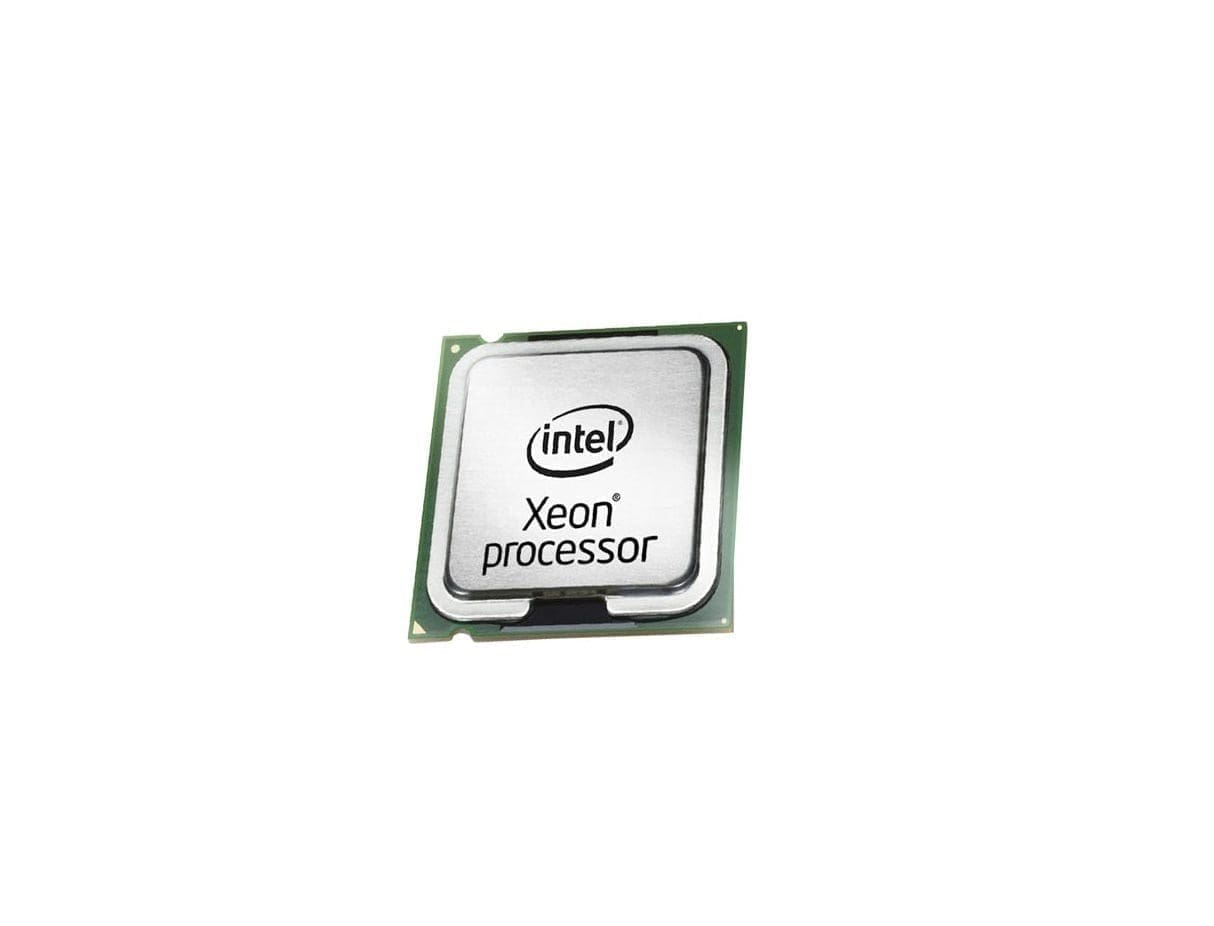

40K2504 IBM 3.00GHz 800MHz FSB 2MB L2 Intel Xeon Processor

40K2504 Technical Specifications

IBM 3.00GHz 800MHz FSB 2MB L2 Cache Intel Xeon Processor Upgrade for xSeries 346

Brand Intel
Part No. 40K2504
Processor Type Server
Series Xeon Processor
Processor Code Name Irwindale
Core Stepping R0
Manufacturing Technology 90 nm
CPU ID String 0F4a
# of Cores 1
# of Threads 1
Clock Speed 3.00 GHz
L2 Cache Size 2 MB
Front Side Bus / QuickPath Interconnect 800 MHz
Thermal Power 110 Watts
VID Voltage Range 1.25V – 1.4V
