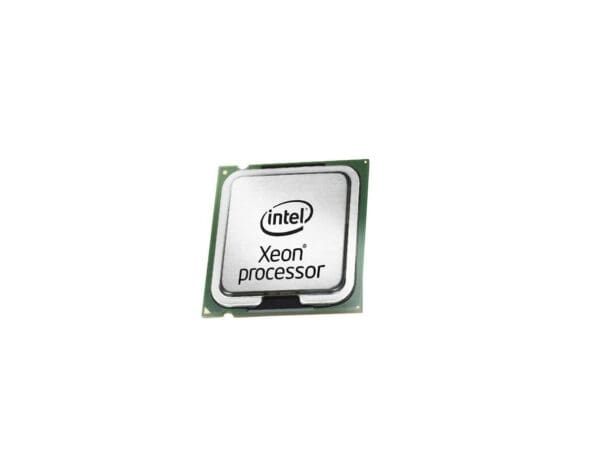

40K2514 IBM 3.80GHz 800MHz FSB 2MB L2 Cache Intel Xeon Processor
40K2514 Overview
40K2514 IBM 3.80GHz 800MHz FSB 2MB L2 Cache Intel Xeon Processor Upgrade for eServer xSeries 236 346
40K2514 Technical Specifications
IBM 3.80GHz 800MHz FSB 2MB L2 Cache Intel Xeon Processor Upgrade for eServer xSeries 236 346
Brand Intel
Part No. 40K2514
Processor Type Server
Series Xeon Processor
Processor Code Name Irwindale
Core Stepping N0
Manufacturing Technology 90 nm
CPU ID String 0F43
# of Cores 1
# of Threads 1
Clock Speed 3.80 GHz
L2 Cache Size 2 MB
Front Side Bus / QuickPath Interconnect 800 MHz
Thermal Power 110 Watts
VID Voltage Range 1.25V – 1.4V
CPU Socket Type PPGA604
