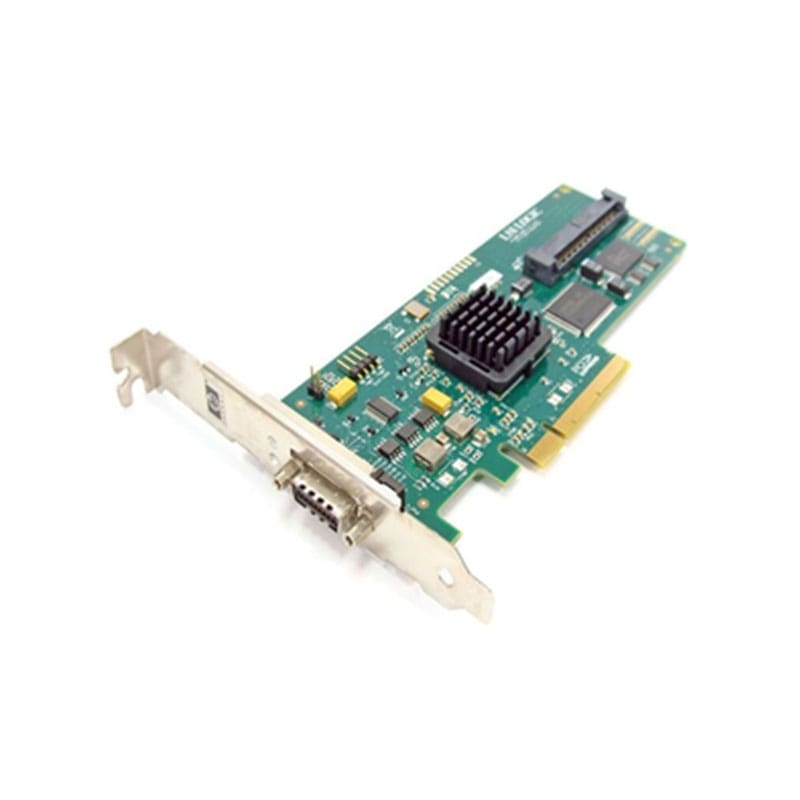

414142-001 HP PCI-Express x8 SAS-SATA SC44Ge Host Bus
414142-001 Overview
The HP 414142-001 PCI-Express x8 SAS-SATA SC44Ge Host Bus Adapter is a storage device designed for use in servers, workstations, and other computing environments. It is a high-performance storage controller that provides connectivity to SAS and SATA hard drives, as well as solid-state drives (SSDs). The device uses the PCI-Express x8 interface, which offers a high bandwidth of up to 4GB/s, making it an excellent choice for high-speed storage applications.
$30
414142-001 Technical Specifications
HP PCI-Express x8 SAS-SATA SC44Ge Host Bus
Manufacturer: HP
Part Number or SKU# 414142-001
Product Type : Controller
Product Name : SAS-SATA
PCI-Express x8
SAS (Serial Attached SCSI)
SATA (Serial ATA)
Data Transfer Rates
SAS: 3 Gb/s per lane (up to 4 lanes)
SATA: 3 Gb/s per port
Connectors
1 x SFF-8484 internal Mini-SAS
1 x SFF-8087 external Mini-SAS
Operating Systems Supported
Microsoft Windows Server 2003/2008, Windows 7/8/10
Red Hat Enterprise Linux 4/5/6, SUSE Linux Enterprise Server 9/10/11
VMware ESX 3.5/4.0/4.1/5.0/5.1
Management Features
HPE Smart Array Advanced Pack 2.0
HPE Systems Insight Manage
