Refurbished 417455-001 Technical Specifications

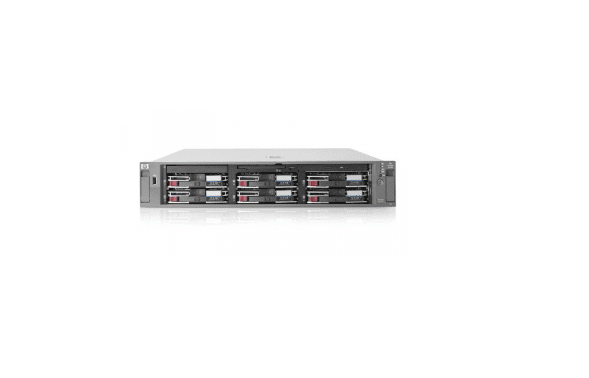

HP Proliant DL380 G5 Base Server 1X Xeon Dual-Core 5130/2.0GHz 2GB RAM 2X Gigabit Ethernet 2U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 417455-001
Product Name : Proliant Dl380 G5 Base Server
2U Rack mount
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon 5130 / 2.0GHz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5000p
Data Bus Speed: 1333 Mhz
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 4 MB
Cache Per Processor: 4 MB
RAM :
Installed Size: 2 GB
Maximum Size: 32 GB
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features: 2 X 1 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Maximum Internal Storage Support: 576 Gb Hot Swap Sas
Optical Drive: None
Removable Storage Drives: None
Storage Controller Type(1st): 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 256 Mb
Storage Controller Type(2nd): 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS CONTROLLER
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb Sdram
NETWORKING :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
