Refurbished 438818-B21 Technical Specifications

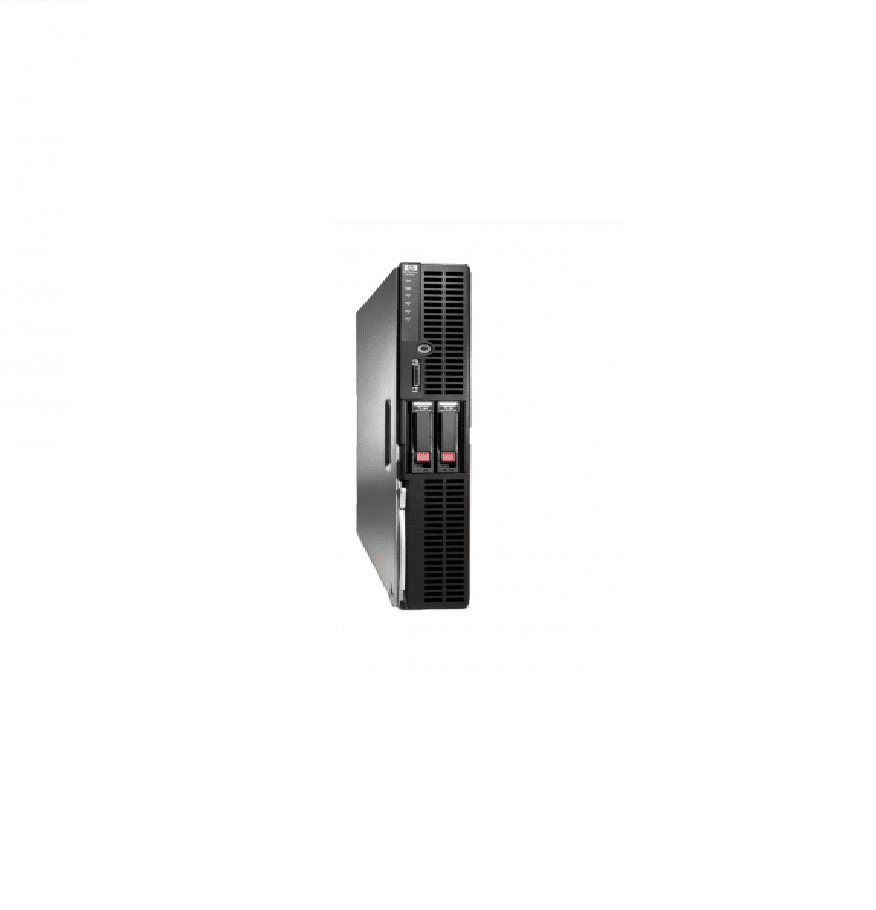

HP Proliant BL685C G1 2X Opteron DC 8220 2.8GHZ 4GB RAM SAS/SATA HS Gigabit Ethernet Ilo Blade System.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packar
Manufacturer Part Number: 438818-B21
Product Name: Proliant Bl685c G1 Server
Blade Server
PROCESSOR & CHIPSET:
Processor Type: Amd Second-Generation Opteron 8220 / 2.8 Ghz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Processor Qty: 2
Max Supported Qty: 4
Multi-Core Technology: Dual-Core
Chipset Type: Nvidia Ck8-04
Cache Memory: 2 Mb L2
MEMORY:
Installed Size: 4 Gb (4 X 1 Gb)
Max Supported Size: 64 Gb
Technology: Ddr2 Sdram
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Data Integrity Check: Advanced Ecc
Features: Registered
Form Factor: Dimm 240-Pin
Features: Registered
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Sas/Sata
Optical Storage: None
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1, Raid 10
Buffer Size: 64 Mb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Video Memory: 32 Mb Ddr Sdram
NETWORKING:
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 3 X Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
I/O EXPANSIONS:
Expansion Bays Total(Free):
2(2) Hot-Swap Drive Bays 2.5 Sff
EXPANSION SLOTS TOTAL(FREE):
4 ( 2 ) X Processor
16 ( 12 ) X Memory – Dimm 240-Pin
3 ( 3 ) X Expansion Slot
INTERFACES & PORTS:
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Network – Ethernet 1000base-T – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
