Refurbished 447596-001 Technical Specifications

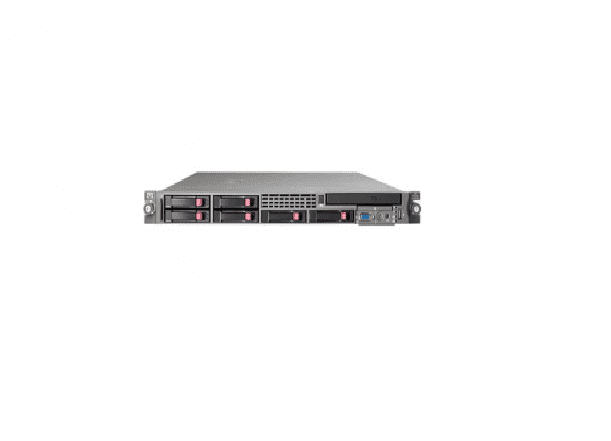

HP Proliant Dl365 G5 2p AMD 2356 Opteron Qc 2.3GHz 4GB RAM SAS HS Combo 2 X Gigabit Ethernet High Performance 1u Rack Server.
General information:
Manufacturer: hewlett-packard
Manufacturer part number: 447597-001
Product name: proliant dl365 g5 1u rack Mount server
Processor & chipset:
Processor type: amd third-generation opteron 2356 / 2.3 GHz
Multi-core technology: quad-core
64-bit computing: yes
Installed qty: 2
Max supported qty: 2
Cache: l2 – 4 x 512 kb
Upgradability: upgradable
Cache memory:
Cache memory type: l3 cache
Installed size: 4 mb
Cache per processor: 2 mb
Ram:
Installed size: 4 gb / 32 gb (max)
Technology: ddr2 sdram
Memory speed: 667 mhz
Memory specification compliance: pc2-5300
Form factor: dimm 240-pin
Configuration features: 4 x 1 gb
Storage:
Hard drive: none.
Storage controller:
Storage controller type: 1 x raid – plug-in card – pci express x4
Controller interface type: serial ata-150 / sas
Storage controller name: smart array p400i
Raid level: raid 0, raid 1, raid 5, raid 10
Buffer size: 256 mb
Storage controller(2nd):
Storage controller type: 1 x ide – integrated
Display & graphics controller:
Graphics controller type: integrated
Graphics processor: ati es1000
Video memory: 32 mb sdram
Networking:
Networking: network adapter – pci express x4 – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): 2 x hp nc373i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: integrated lights-out 2 standard
Features: wake on lan (wol), dhcp support, acpi support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion / connectivity:
Expansion bays total (free):
6 ( 6 ) x hot-swap – 2.5 sff (6 Bays)
1 ( 1 ) x front accessible – 5.25 slim line
Expansion slots total (free):
1 ( 1 ) x pci express x8 – full-length, full-height
1 ( 1 ) x pci express x4 – low-profile
2 ( 1 ) x processor
8 ( 6 ) x memory – dimm 240-pin
Interfaces:
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
2 x display / video – vga – 15 pin hd d-sub (hd-15) ( 1 in front )
4 x hi-speed usb ( 1 front, 2 rear, 1 internal )
2 x network – ethernet 10base-t/100base-tx/1000base-tx – rj-45
1 x management – hp ilo – rj-45
Power device:
Power device type: power supply – hot-plug
Power redundancy: optional
Power redundancy scheme: 1+1 (with optional power supply)
Installed qty: 1
Max supported qty: 2
Voltage required: ac 120/230 v ( 50/60 hz )
