44E8690 Technical Specifications

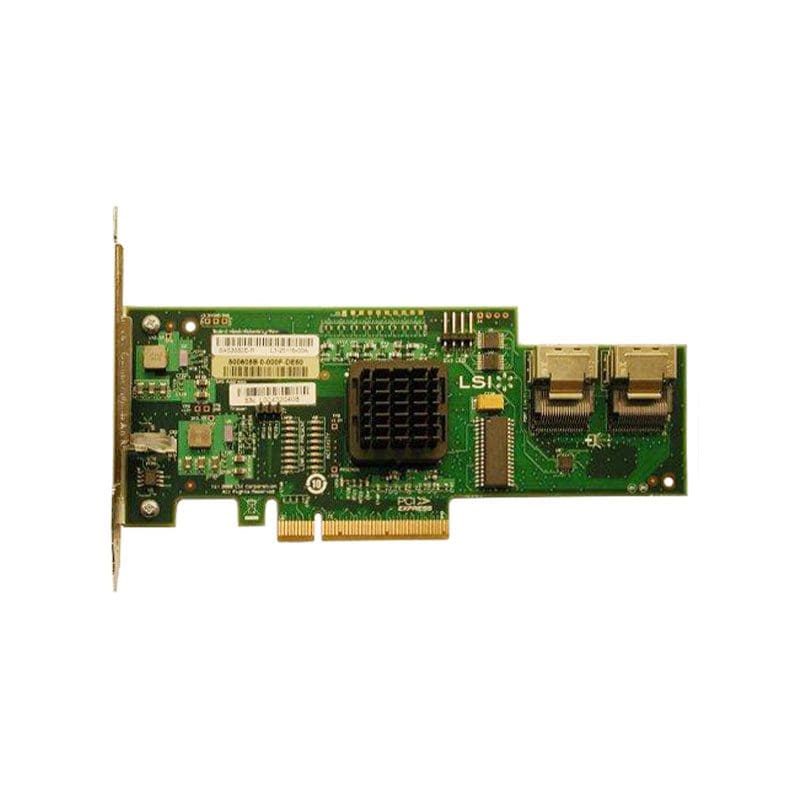

IBM ServeRAID-BR10i SAS/SATA Controller
Manufacturer Part Number 44E8690
Brand Name IBM
Product Type SAS Controller
Technical Information
Host Interface PCI Express x1
Controller Type Serial ATA/300
3Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
1E
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.7″
Width 6.6″
Depth 0.6″
Form Factor Plug-in Card
Weight (Approximate) 3.20 oz
