463-3980 Technical Specifications

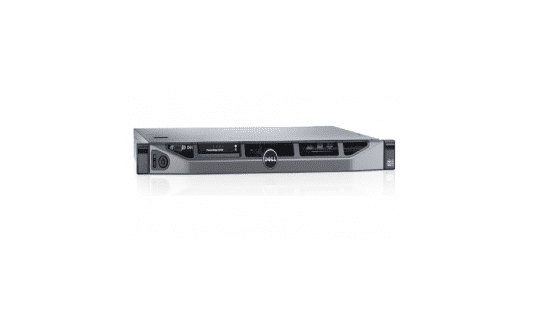

Dell PowerEdge R630 1U Rack Server
GENERAL INFORMATION :
Manufacturer : Dell
Manufacturer Part Number : 463-3980
Product Name : Poweredge R630 1u Rack Mount Server
PROCESSOR & CHIPSET :
CPU: Intel Xeon E5-2620V3 / 2.4GHZ
Max Turbo Speed : 3.2 GHZ
Number Of Cores : 6-CORE
Installed Cpu Qty : 1
Max Cpu Qty : 2
Cpu Socket : LGA2011-V3 Socket
Chipset Type : Intel C610
CACHE MEMORY :
Installed Size : L3 CACHE – 15 MB
Cache Per Processor : 15 MB
MEMORY :
Installed Size : 8 GB / 768 GB (MAX)
Technology : DDR4 SDRAM – ECC
Memory Speed : 1866 MHZ
Memory Specification Compliance : PC4-17000
Form Factor : DIMM 288-PIN
Features : Registered, Dual Rank
Configuration Features : 1 X 8 GB
RAM Slots: 24 x DDR4 RAM Slots
RAM Supported : 768 GB – LOAD-REDUCED – ECC 384 GB – REGISTERED – ECC
