Refurbished 463-3991 Technical Specifications

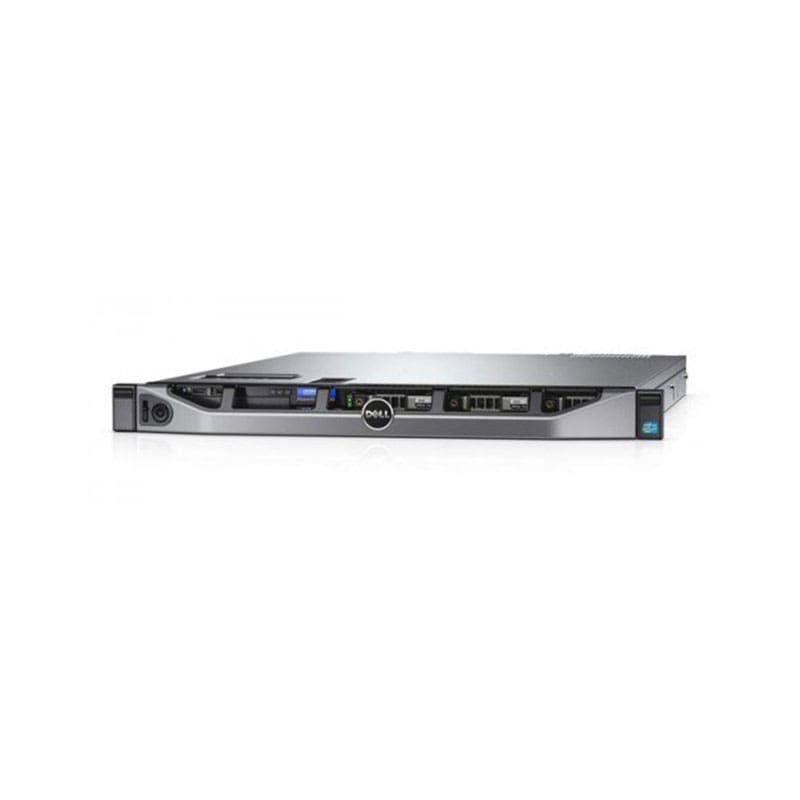

Dell Poweredge R630 13th Gen 1x Intel Xeon 12-Core E5-2680V3/ 2.5GHz, 16GB DDR4 SDRAM, 1X 300 GB HDD, Dell Perc H730P With 2 GB Buffer, 1X 750W PS, 1U Rack Mountable Server.
GENERAL INFORMATION :
Manufacturer : Dell
Manufacturer Part Number : 463-3991
Product Name: Poweredge R630 13TH GEN – 1U Rack Mount Server
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5-2680V3 / 2.5 GHz
Max Turbo Speed : 3.3 GHz
Number Of Cores : 12-Core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Lga2011-V3 Socket
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 30 MB
Cache Per Processor : 30 MB
MEMORY :
Installed Size : 16 GB / 768 GB (MAX)
Technology : DDR4 SDRAM – ECC
Memory Speed : 2133 MHZ
Memory Specification Compliance : PC4-17000
Form Factor : DIMM 288-pin
Memory Slots: 24 x DDR4 RAM Slots
Features : Registered, Dual Rank
Configuration Features : 1 X 16 GB
Ram Supported : 768 GB – Load-Reduced – ECC ¦ 384 GB – Registered – ECC
STORAGE:
Hard drive :
Type : Hdd – Hot Swap
Capacity : 1 X 300 GB
Interface Type : SAS 6GB/S
Spindle Speed : 10000 RPM
Optical Drive : DVD-ROM – SATA
STORAGE CONTROLLERS:
Type : 1 X Raid
Storage Controller Name : Dell Perc H730p
Raid Level : RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60
Buffer Size : 2 GB
NETWORK & COMMUNICATION:
Type : Plug-In Card
Ethernet Controller : Broadcom BCM5720
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Dell Remote Access Controller 8 Express (IDRAC8)
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Provided : 750 WATT
EXPANSION/ CONNECTIVITY :
Expansion bays total (free) :
8 (Total) / 7 (Free) X Hot-Swap 2.5
EXPANSION SLOTS TOTAL (FREE) :
2 (Total) / 1 (Free) X Cpu
24 (Total) / 23 (Free) X Dimm 288-Pin
Pcie 3.0 X16 – Low-Profile ( X8 Mode )
Pcie 3.0 X16 – Three-Quarter-Length, Full-Height
INTERFACES & PORTS :
LAN (Gigabit Ethernet)
4 X USB ( 2 Front, 2 Rear )
