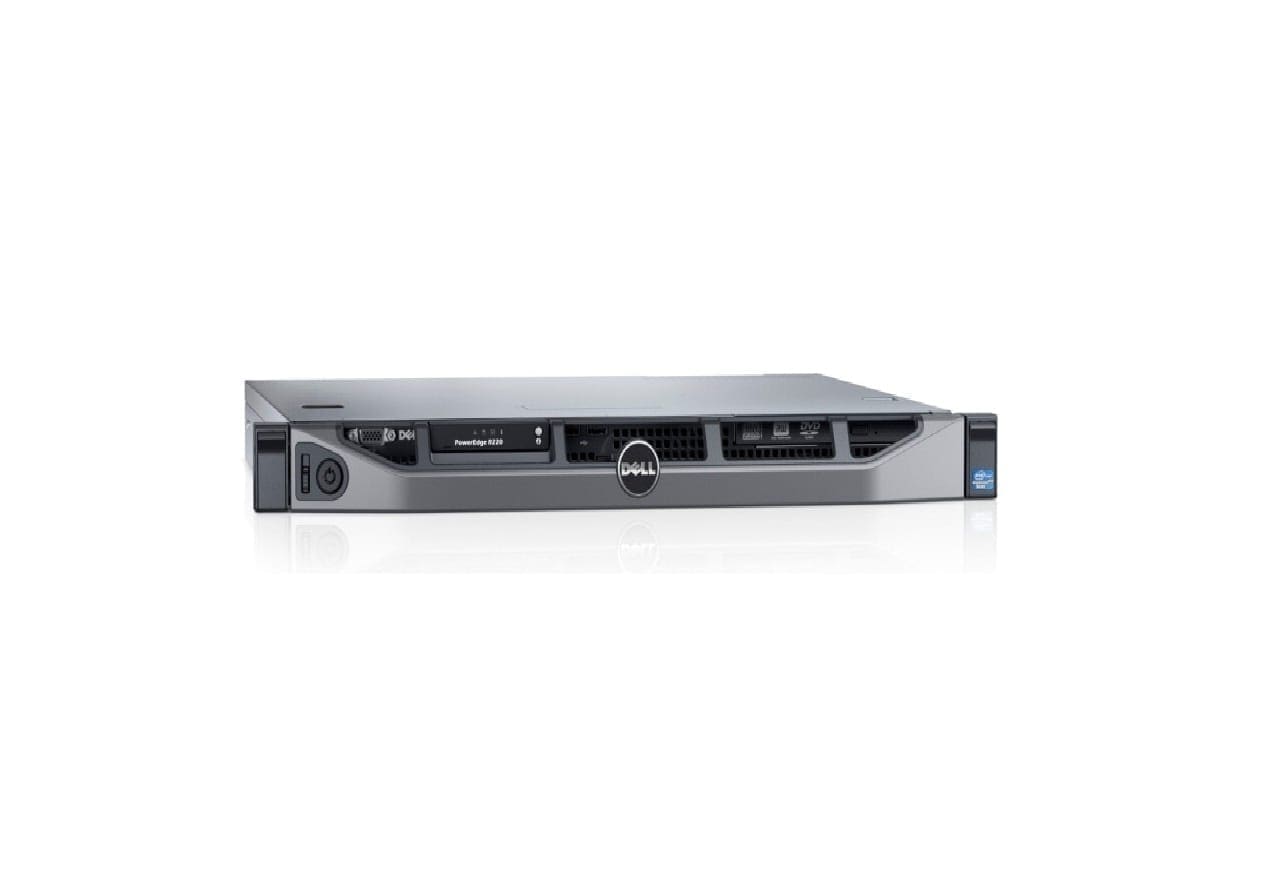

Refurbished 463-7657 Dell Poweredge R630 1x XEON 8-Core E5-2620-V4

Refurbished 463-7657 Technical Specifications

Dell Poweredge R630 1x XEON 8-Core E5-2620-V4/2.1GHz, 8GB DDR4 SDRAM, 1X 300GB HDD, 4X Gigabit Ethernet, 2X 750W PS, 1u Rack Server.

GENERAL INFORMATION :
Manufacturer : dell
Manufacturer Part Number : 463-7657
Product Name : Poweredge R630 1u Rack Mount
PROCESSOR & CHIPSET :
CPU: Intel Xeon E5-2620V4 / 2.10ghz
Max Turbo Speed : 3.0 GHZ
Number Of Cores : 8-CORE
Installed Cpu Qty : 1
Max CPU Qty : 2
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
Chipset Type : Intel C610
CACHE MEMORY :
Installed Size : L3 Cache – 20 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 8 Gb / 768 Gb (Max)
Technology : Ddr4 Sdram – Ecc
Memory Speed : 2400 Mhz
Form Factor : Dimm 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features : Registered, Dual Rank
Configuration Features : 1 X 8 Gb
Ram Supported : 768 Gb – Load-Reduced – Ecc 384 Gb – Registered – Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive Type : Hdd – Hot-Swap
Capacity : 1 X 300 Gb
Interface Type : Sas 12gb/S
Spindle Speed : 10000 Rpm
Storage Controller Type : 1 X Raid – Integrated
Controller Interface Type : Sas 12gb/S
Storage Controller Name : Dell Perc H73
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50, Raid 60
Buffer Size : 1 Gb
GRAPHICS CONTROLLER :
Graphics Processor : Matrox G200
Video Memory : 16 Mb
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Ethernet Controller : Broadcom Bcm5720
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Dell Remote Access Controller 8 Express (Idrac8)
