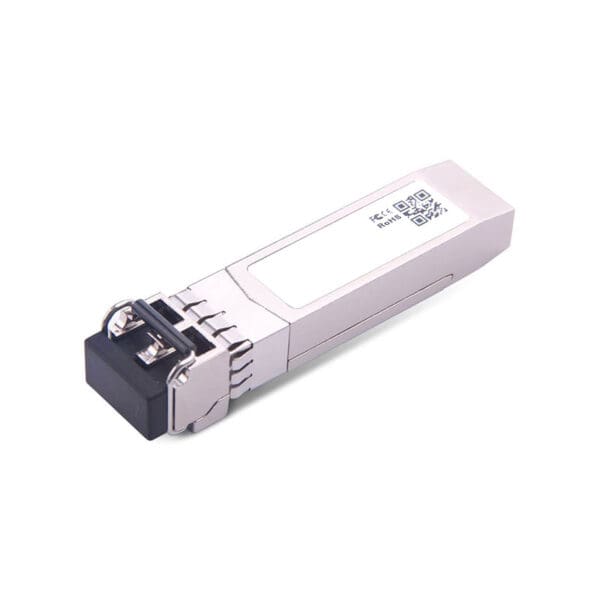

46C3447 Lenovo BNT – SFP+ transceiver module – 10 GigE

46C3447 Technical Specifications

Lenovo BNT – SFP+ transceiver module – 10 GigE

Brand: Lenovo
Product Line: Lenovo BNT
Manufacturer: Lenovo System X
Network & Communication
Cable Type: Ethernet 10GBase-SR
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Data Transfer Rate: 10 GBps
Form Factor: Plug-in module
Max Transfer Distance: 984 ft
Product Type: SFP+ transceiver module
Connectivity
Interface Provided: 1 x Ethernet 10GBase-SR
Product Information
Packaged Quantity: 1
Certifications & Listings
ENERGY STAR Certified: No
Service & Support
Service & Support Details
Limited warranty: – 1 year
Limited Warranty: 1-year warranty
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth:20 nm (840-860 nm)
Rx Wavelength Bandwidth:20 nm (840-860 nm)
Minimum Transmitting Power:-6.5 dB
Maximum Transmitting Power:1 dB
Receiver Sensitivity:-11.1 dBm
Receiver Overload:-1 dBm
Power:+3.3V single power supply
