46W4217 Technical Specifications

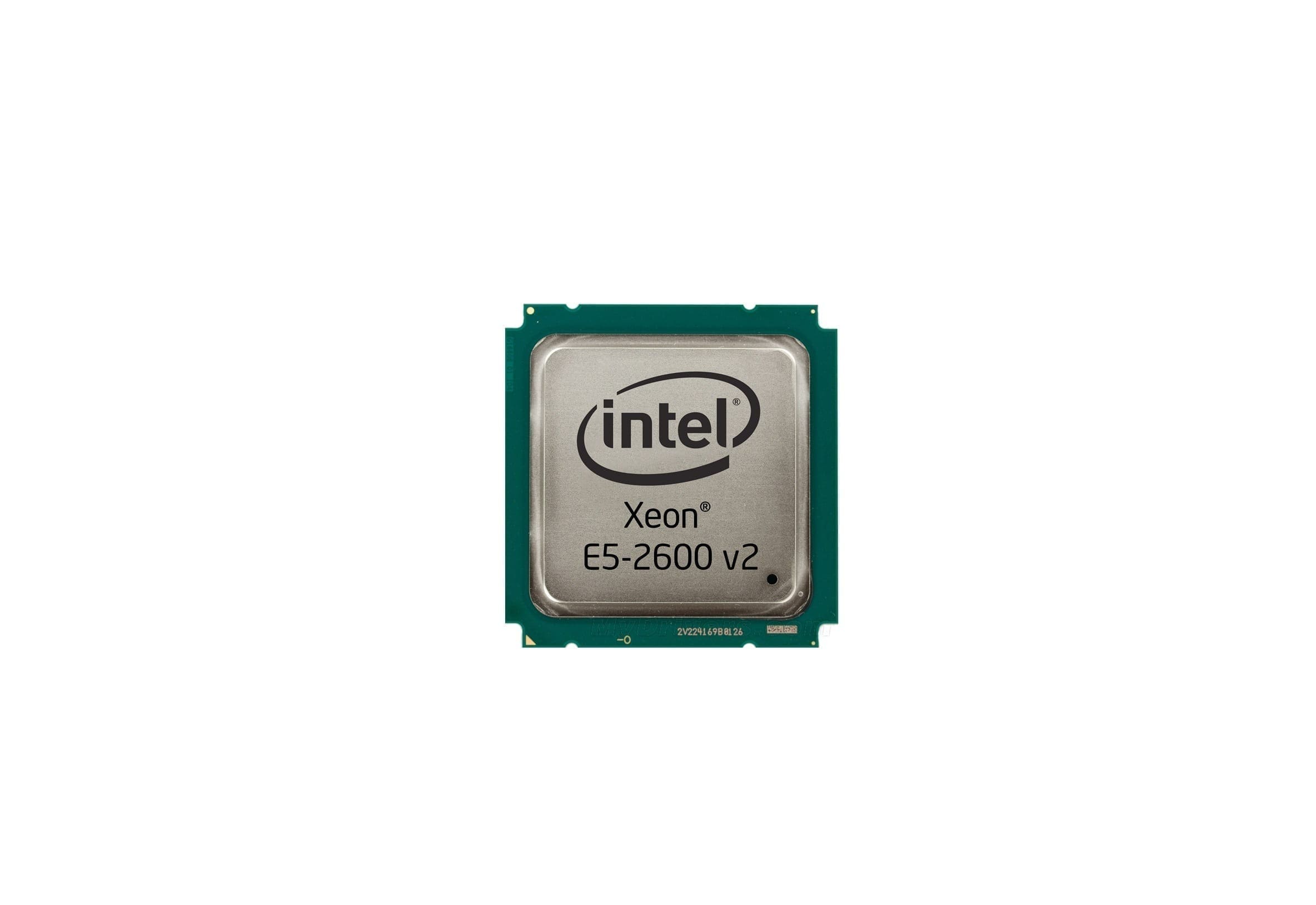

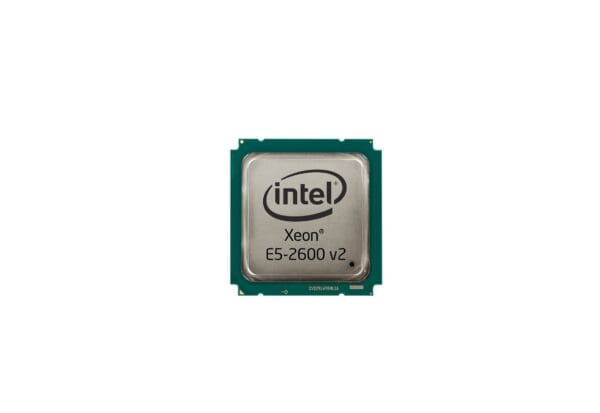

IBM 2.00GHz 7.20GT/s QPI 20MB L3 Cache Intel Xeon E5-2640 v2 8 Core Processor Upgrade
Brand Intel
Part No. 46W4217
Processor Type Server
Processor Family E5-2600 v2
Series Xeon Processor
Core Model Type/ProcNo. E5-2640 v2
Processor Code Name Ivy Bridge
Core Stepping M1
Manufacturing Technology 22 nm
# of Cores 8
# of Threads 16
Clock Speed 2.00 GHz
L3 Cache Size 20 MB
Front Side Bus / QuickPath Interconnect 7.20 GT/s
Thermal Power 95 Watts
VID Voltage Range 0.65V – 1.3V
CPU Socket Type LGA2011
