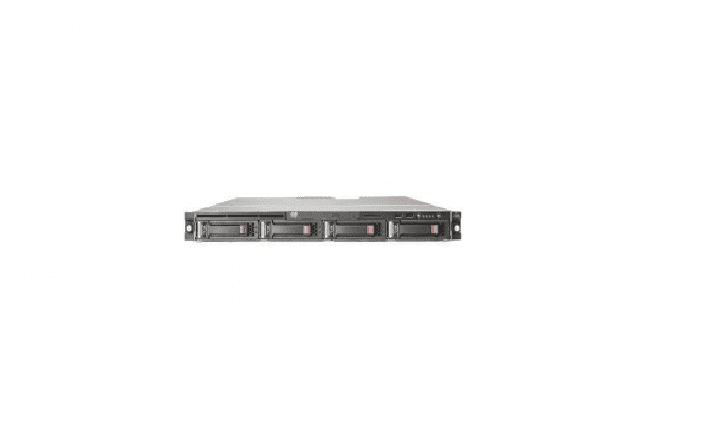

Refurbished 490427-001 Technical Specifications
HP Proliant Dl160 G6 1x Intel Xeon E5504 Qc 2.0GHz 4GB RAM SATA 1 X 60GB HDD 2x Gigabit Ethernet 1u Rack Server.
General Information :
Manufacturer: Hewlett-Packard
Manufacturer part number: 490427-001
Product name: hp proliant dl160 g6 rack server.
1U Rack Mount,
Processor & chipset:
Processor type: intel xeon e5504 (2.00 GHz, 4mb l3 cache, 80w)
Multi-core technology: quad-core.
64-bit computing: yes.
Installed qty: 1
Max supported qty: 2
Upgradability: upgradable.
Chipset type: intel 5520
Cache memory:
Cache memory type: l3 cache
Installed size: 4 mb
Cache per processor: 4 mb
Memory:
Installed memory : 4 gb
Maximum memory : 192 gb
Technology : ddr3 sdram – advanced ecc
Memory speed : 667 mhz
Memory specification compliance: pc3-10600
Form factor : dimm 240-pin
Configuration features: 2 x 2 gb
18 DDR3 Slots
Storage & storage controller:
Hard drives installed: 1 x 60gb 7.2k non hot plug sata.
Optical drive : none
Storage controller: hp smart array b110i.
Storage controller type : sata
Raid level : raid 0, raid 1, raid 10
Display & graphics controller:
Graphics controller type: integrated
Max allocated ram size: 32 mb
Networking:
Networking : network adapter – integrated.
Ethernet ports : 2 x gigabit ethernet.
Ethernet controller : hp nc362i
Data link protocol : ethernet, fast ethernet, gigabit ethernet.
Expansion / connectivity:
Expansion bays total (free):
1 ( 1 ) x front accessible – 5.25 in slim line
4 ( 3 ) x hot-swap – 3.5in x 1/3h (4 Bays)
Expansion slots total (free):
1 ( 1 ) x pci express x4 – low-profile
1 ( 1 ) x pci express x16
18 ( 16 ) x memory – fb-dimm 240-pin 2
2 ( 1 ) x processor
Interfaces:
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x display / video – vga – 15 pin hd d-sub (hd-15)
4 x usb – 4 pin usb type a ( 2 front, 2 rear )
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
Power device:
Power device type: power supply
Voltage required: ac 120/230 v ( 50/60 hz )
Power provided: 500 watt.
