Refurbished 490442-001 Technical Specifications

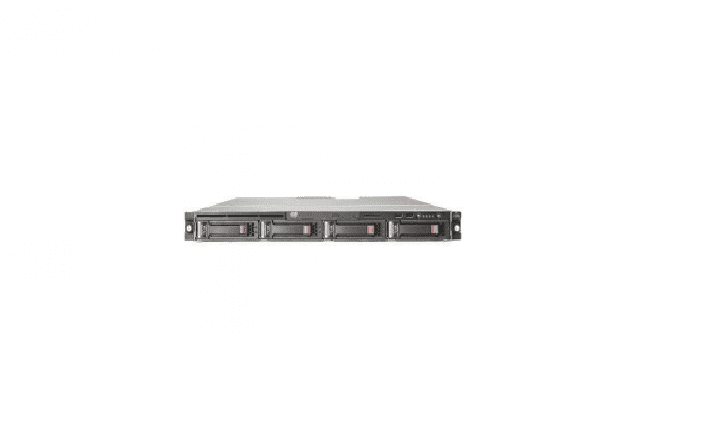

HP Proliant DL160 G6 1p Intel Xeon E5504 Qc 2.0GHz 4GB Ram SAS/SATA LFF Hot Swap OB 1u Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 490442-001
Product Name: Proliant Dl160 G6 – 1u Rack Mount Server (SAS/SATA Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5504/2.00 Ghz
Multi-Core Technology: Quad-Core
Processor Sockets Supported: Fclga-1366
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Mainboard Chipset Type: Intel 5520
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 4 Mb
Cache Per Processor: 4 Mb
MEMORY:
Installed Ram Memory: 4 Gb
Maximum Memory: 192 Gb
Memory Slots: 18 Dimm Slots (18 DDR3 Slots)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Configuration Features: 2 X 2 Gb
STORAGE:
Hard Drives Installed: None Included
STORAGE CONTROLLER:
Smart Array P410 Sas/Sata Raid
Storage Controller Type: Raid – Plug-In Card – Pci Express 2.0 X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P410
Raid Level: Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHIC:
Graphics Controller Type: Integrated
Max Allocated Ram Size: 32 Mb
NETWORKING:
Networking: Network Adapter – Integrated
Expansion Slots: Up To 2
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc362i
Data Link Protocol: ETHERNET, FAST ETHERNET, GIGABIT ETHERNET
