Refurbished 491335-001 Technical Specifications

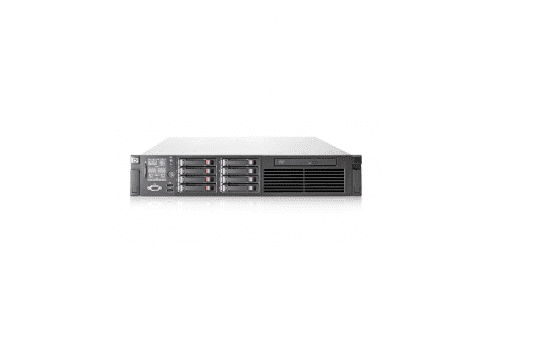

HP Proliant Dl380 G6 1p Xeon L5520 Qc 2.2GHz 4GB RAM 4 x Gigabit Ethernet 2u Rack Server.
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 491335-001
Product Name: Proliant Dl380 G6 – 2u Rack Mount Server (High Efficiency Model)
PROCESSOR & CHIPSET :
Cpui : Ntel Xeon L5520 / 2.26 Ghz
Number Of Cores : Quad-Core
64-Bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel 5520
Front Side Bus : 1066 Mhz
CACHE MEMORY :
Installed Size : L3 Cache – 8 Mb
Cache Per Processor : 8 Mb
MEMORY :
Installed Size : 4 Gb / 24 Gb (Max)
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
18 DDR3 Slots
Features : Registered
Configuration Features : 2 X 2 Gb
Ram Supported : Pc3-8500 – 192 Gb – Registered Pc3-10600 – 24 Gb – Unbuffered
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS :
Type : 1 X Raid – Plug-In Card – Pcie
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P410i With 512mb Bbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : None
DISPLAY & GRAPHICS :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free):
1 (Total) / 1 (Free) X External 5.25 Slim Line
8 (Total) / 8 (Free) X Hot-Swap 2.5 Sff (8 Bays)
Expansion Slots Total (Free):
3 (Total) / 3 (Free) X Pcie X8 ( X4 Mode )
2 (Total) / 2 (Free) X Pcie X16 ( X8 Mode )
18 (Total) / 16 (Free) X Dimm 240-Pin
2 (Total) / 1 (Free) X Cpu
INTERFACES & PORTS:
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X Serial
2 X Vga ( 1 In Front )
4 X Usb ( 2 Front, 2 Rear )
4 X Lan (Gigabit Ethernet)
1 X Hp Ilo
POWER :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
DIMENSIONS :
Height: 3.38 In
Width : 17.54 In
Depth : 27.25 In
Weight : 47.18 Lbs
