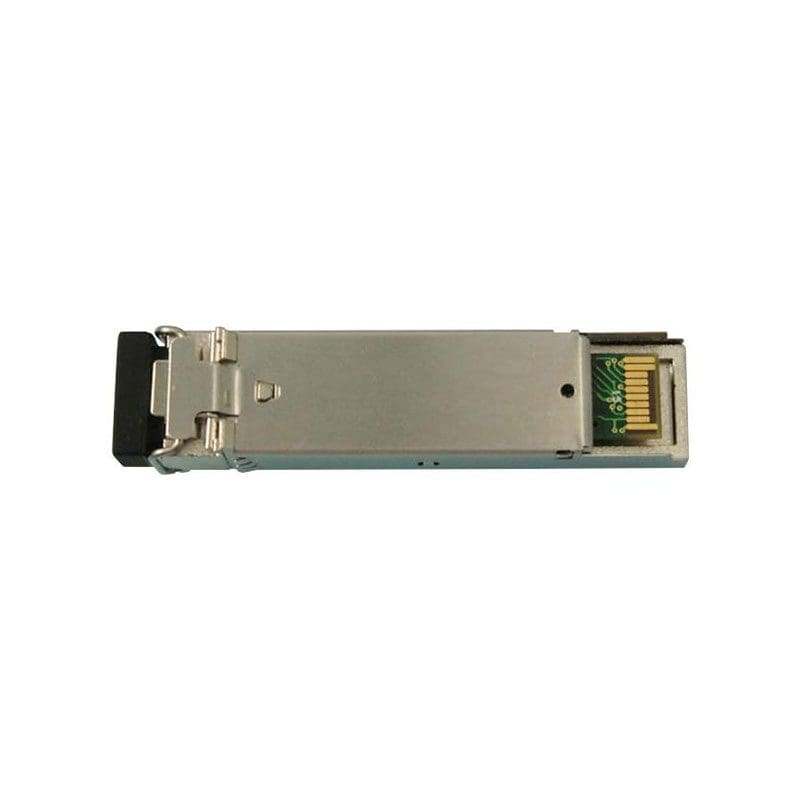

49Y8578 IBM 10 Gigabit Ethernet Sw Sfp+ Transceiver

49Y8578 Technical Specifications

IBM 10 Gigabit Ethernet Sw Sfp+ Transceiver

Manufacturer IBM
Manufacturer Part # 49Y8578Device Type : Transceiver Module
Enclosure Type : Plug-in Module
Networking :
Connectivity Technology : Wired
Cabling Type : 10gbase-sw
Data Link Protocol : 10 Gigabit Ethernet
Data Transfer Rate : 10 Gbps
Expansion / Connectivity :
Interfaces : 1 X Network
Compatible Slots : 1 X Sfp
Co2 Savings: 0
SFP transceiver type: Fiber optic
Data transfer: 10 Gbp/s
Interface type: SFP+
Multi-mode fiber (MMF) supported: Yes
SFP transceiver standard: SW
Wavelength: 850 nm
Cabling technology: 10GBase-SW
Auto MDI/MDI-X: Yes
Cable type: Fiber optic
Hot-Plug support: Yes
Certification: MSA
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 80%
Storage relative humidity (H-H): 10 – 85%
Width: 13.4 mm
Depth: 56.5 mm
Height: 8.5 mm
