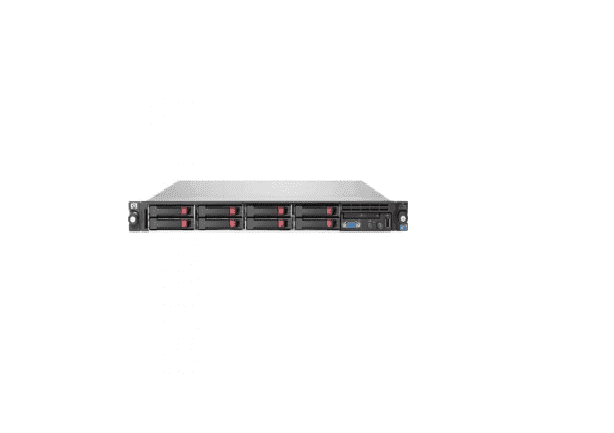

Refurbished 504635-001 HP Proliant DL360 G6 E5530 Quad Core Xeon

Refurbished 504635-001 Technical Specifications

HP Proliant DL360 G6 E5530 Quad Core Xeon 2.4G 8MB Buffer 6 GB Memory 2 Way Rack Mountable 1U Server.

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 504635-001
Product Name: Proliant Dl360 G6 – 1u Rack Mount Server (Base Model)
PROCESSOR & CHIPSET :
Cpu : Intel Xeon E5530 / 2.4 Ghz
Max Turbo Speed : 2.8 Ghz
Number Of Cores : Quad-Core
64-Bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel 5520
Frnt Side Bus : 1066 Mhz
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 8 Mb
Cache Per Processor : 8 Mb
MEMORY :
Installed Size : 6 Gb / 144 Gb (Max)
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
18 DDR3 Slots
STORAGE:
Hard Drive: None.
Optical Drive: None.
STORAGE CONTROLLER :
Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 256 Mb
DISPLAY & GRAPHICS CONTROLLER :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
1 (Total) / 1 (Free) X External 5.25 Slim Line
4 (Total) / 4 (Free) X Hot-Swap 2.5 Sff (4 Bays)
Expansion Slots Total (Free):
1 (Total) / 0 (Free) X Pcie X8 – Low-Profile
1 (Total) / 1 (Free) X Pcie X16 – Full-Length, Full-Height
18 (Total) / 15 (Free) X Dimm 240-Pin
2 (Total) / 1 (Free) X Cpu
INTERFACES & PORTS:
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X Serial
1 X Vga
2 X Lan (Gigabit Ethernet)
1 X Hp Ilo
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
