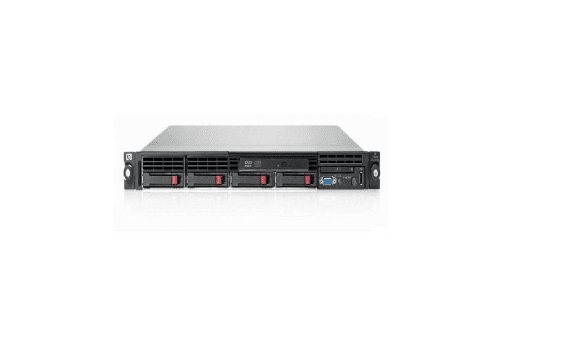

Refurbished 505683-001 HP Proliant Dl320 G6 1x Intel Xeon

Refurbished 505683-001 Technical Specifications

HP Proliant Dl320 G6 1x Intel Xeon L5506 / 2.13 GHz 4 GB RAM SATA/SAS 2x Gigabit Ethernet 1u Rack Server.

General information:
Manufacturer : hewlett packard
Manufacturer part number : 505683-001
Product name : proliant dl320 g6 rack server.
1U Rack Mount Server
Processor & chipset :
Processor type : intel xeon L5506 / 2.13 GHz (60w)
Multi-core technology : quad-core
64-bit computing : yes
Installed qty : 1
Max supported qty : 1
Chipset type : intel 5500
Data bus speed : 1066 mhz
Cache memory :
Cache memory type : l3 cache
Installed size : 4 mb
Cache per processor : 4 mb
Ram :
Installed size : 4 gb
Max supported size : 24 gb
Technology : ddr3 sdram – ecc
Form factor : dimm 240-pin
Features : unbuffered
Configuration features : 2 x 2 gb
Storage & storage controller :
Hard drive : none.
Optical drive : none.
Internal storage : up to 4 x 1tb 3.5 in hot plug sata/sas.
Note: sas requires optional pci controller.
Storage controller : hp smart array b110i sata raid controller (raid 0/1/0+1)
Display & graphics controller :
Graphics controller type : integrated
Graphics processor : ati es1000
Video memory : 32 mb
Networking :
Networking : network adapter – integrated
Ethernet ports : 2 x gigabit ethernet
Ethernet controller : hp nc326i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Features : wake on lan (wol), acpi support, pxe support
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion/connectivity :
Expansion slots total (free):
1 ( 1 ) x pci express x1 – half-length, low-profile ( x4 mode )
1 ( 1 ) x pci express x16 – full-length ( x16 mode )
1 ( 0 ) x processor 9 ( 7 ) x memory – dimm 240-pin
Interfaces :
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
2 x display / video – vga – 15 pin hd d-sub (hd-15)
7 x hi-speed usb – 4 pin usb type a ( 2 in front )
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
Power supply :
Power device type : power supply
Voltage required : ac 120/230 v ( 50/60 hz )
Power provided : 500 watt.
