Refurbished 539791-B21 Technical Specifications

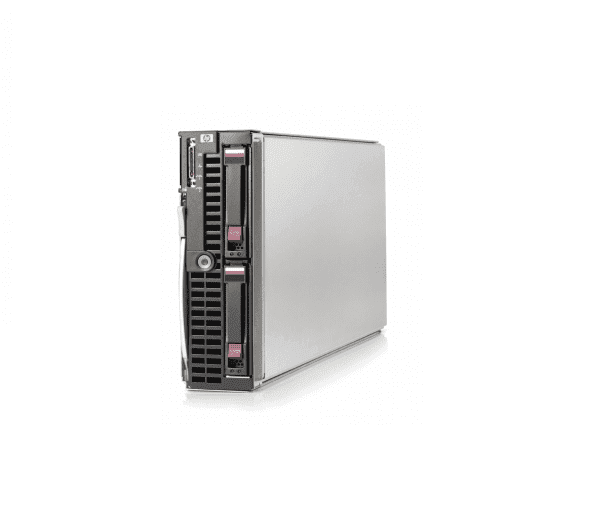

HP Proliant BL465C G6 1x AMD Opteron 2435/2.6 GHz 4 GB Ram SAS/SATA 2x HP NC370I Gigabit Ethernet Blade Server.
GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 539791-B21
Product Name : Proliant Bl465c G6 Server
Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 2435 / 2.6 Ghz
Multi-Core Technology : 6-Core
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
64-Bit Computing : Yes
Chipset : Serverworks Ht-1000 And Ht-2100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 6 MB
Cache Per Processor : 6 MB
RAM :
Installed Size : 4 GB
Max Supported Size : 64 GB
Ram Technology : Ddr2 Sdram
Memory Speed : 800 Mhz
Memory Specification Compliance : Pc2-6400
Form Factor : Dimm 240-Pin
8 DDR2 Slots,
Features : Registered
Configuration Features : 2 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Storage Controller Type : 1 X Serial Attached Scsi – Integrated – Pci Express X4
Controller Interface Type : SAta-150 / Sas
Storage Controller Name : Smart Array E200i
Raid Level : Raid 0, Raid 1
Buffer Size : 64 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 32 Mb Ddr Sdram
NETWORKING :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc370i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Dhcp Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3P
EXPANSION/CONNECTIVITY :
Expansion Bays Total (Free):
2 ( 2 ) X Hot-Swap – 2.5i In Sff (2 Bays)
Expansion Slots Total (Free):
8 ( 6 ) X Memory – Dimm 240-Pin
2 ( 1 ) X Processor.
INTERFACES :
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
1 X Display / Video 15 Pin Hd D-Sub (Hd-15)
Cache Per Processor : 6 Mb
