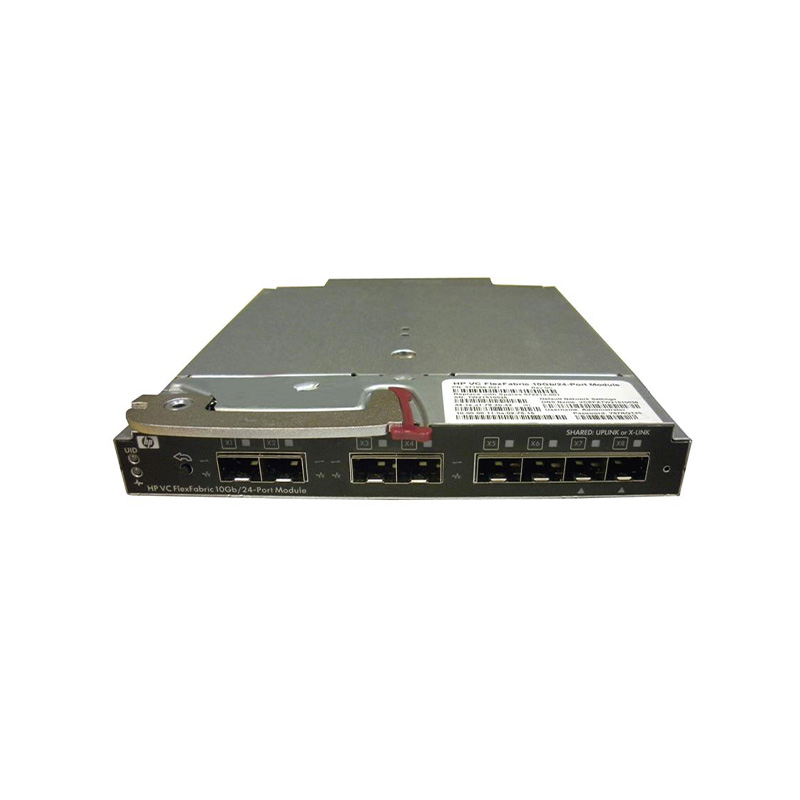

572213-001 HP Virtual Connect FlexFabric Switch Module
572213-001 Overview
The HP 572213-001 Virtual Connect FlexFabric module is a next-generation interconnect solution designed for HP BladeSystem c-Class enclosures. It consolidates LAN and SAN networking by supporting Ethernet, FCoE, iSCSI, and Fibre Channel protocols through 24 high-speed 10Gbps SFP+ ports. With its Virtual Connect technology, administrators can assign server connectivity profiles and streamline network provisioning without requiring changes to external switches. This reduces cabling, lowers costs, and enables a highly flexible, converged infrastructure. Ideal for enterprises running mission-critical workloads, it simplifies management while delivering scalable bandwidth for both server-to-LAN and server-to-SAN connectivity.
572213-001 Technical Specifications
HP Virtual Connect FlexFabric 10GBps 24-Ports Interconnect SAN Switch Module
Manufacturer: HP
Manufacture Part Number: 572213-001
Product Type: Virtual Connect FlexFabric Interconnect Module
Form Factor: HP BladeSystem c-Class enclosure module
Ports: 24 x SFP+ 10Gbps ports
Port Speed: 1GbE / 10GbE Ethernet, FCoE, iSCSI, and Fibre Channel over Ethernet
Protocols Supported: Ethernet, Fibre Channel, FCoE, iSCSI
Connector Type: SFP+ (fiber/copper DAC supported)
Bandwidth: 480Gbps aggregate switching capacity
Virtual Connect Technology: Enables server profiles, VLANs, SAN fabric separation
Management: Web GUI, CLI, SNMP, HP Virtual Connect Manager
High Availability: Redundant module support in enclosure
Power: Powered through HP BladeSystem enclosure
Cooling: Shared enclosure-based cooling system
