Refurbished 583966-001 Technical Specifications

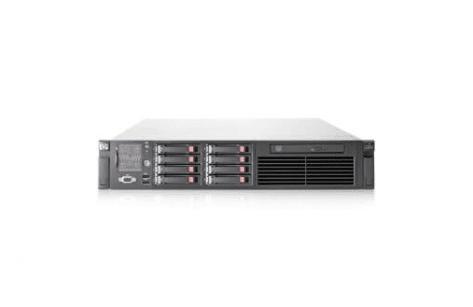

HP Proliant DL380 Gen7 2X Intel Xeon HC X5650/2.66 GHz 12GB RAM DDR3 SDRAM SAS/SATA DVD RW Gigabit Ethernet 2U Rack Server.
General Information:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 583966-001
Product Name :HP Proliant Dl380 Gen7 2u Rack (Entry Level) Server
Processor & Chipset :
Processor Type : Intel Xeon Processor X5650(2.66 Ghz, 12mb L3 Cache, 95w)
Multi-Core Technology : Hexa Core (6 core)
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable.
64-Bit Computing : Yes.
Chipset Type : Intel 5520
Cache Memory :
Cache Memory Type: L3 Cache
Installed Size: 24 Mb
Cache Per Processor: 12 Mb
Ram :
Installed Size : 12 Gb
Max Supported Size : 192 Gb
Ram Technology : Ddr3 Sdram.
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor: Dimm 240-Pin
Features : Registered.
Configuration Features: 6 X 2 Gb
Storage & Storage Controller :
Hard Drive : None.
Optical Drive : Hp Slim Sata Dvd Rw Drive.
Internal Storage :
Standard: 8 Sff Sas/Sata Hdd Bays.
Optional: 16 Sff Sas/Sata Hdd Bays.
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: Serial SAta-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 1 Gb.
Display & Graphics Controller :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Networking :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards:
Ieee 802.3, Ieee 802.3u, Ieee 802.1q
Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
Expansion / Connectivity :
Expansion Bays Total (Free) :
1 ( 0 ) X Front Accessible – 5.25in Slim Line.
8 ( 8 ) X Hot-Swap – 2.5in Sff.
Expansion Slots Total (Free) :
1 ( 1 ) X Pci Express 2.0 X16 – Full-Length, Full-Height ( X8 Mode )
2 ( 2 ) X Pci Express 2.0 X8 – Half-Length, Full-Height ( X4 Mode )
18 ( 12 ) X Memory – Dimm 240-Pin
2 ( 0 ) X Processor.
Interfaces :
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
2 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 Front, 1 Rear )
4 X Usb – 4 Pin Usb Type A ( 2 Front, 2 Rear )
4 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
Power Device :
Power Device Type : Power Supply.
Installed Qty : 2
Max Supported Qty: 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750w Hot Plug Power Supplies.
Dimension & Weight :
Height : 3.38 In.
Width : 17.54 In.
Depth : 27.25 In.
Weight : 47 Lb.
