Refurbished 590636-001 Technical Specifications

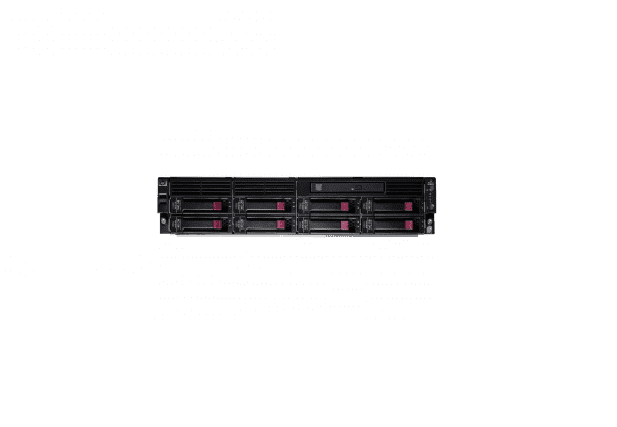

HP ProLiant DL180 G6 2U Rack Server 1 x Intel Xeon L5630 2.13GHz.
General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 590636-001
Product Name : Proliant Dl180 G6 2u Rack Mount
Processor & Chipset :
Processor Type : Intel Xeon L5630 / 2.13 hz
Multi-Core Technology : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 5520
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 Mb
Memory :
Installed Size : 4 Gb
Maximum Size : 192 Gb
Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 1 X 4 Gb
Storage & Storage Controller :
Hard Drive : None
Storage Controller Type : Raid – Plug-In Card
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410 With 256mb Bbwc
Raid Level : Raid 0, Raid 1, Raid 10
Buffer Size : 256 Mb
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Shared Video Memory (Uma)
Max Allocated Ram Size : 32 Mb
Graphics Resolutions Up To : 1600×1200 16bpp@75hz
Network & Communication :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc362i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Expansions & Connectivity :
Expansion Bays Total (Free) :
8 (Total) / 8 (Free) X Hot-Swap – 3.5in X 1/3h
1 (Total) / 0 (Free) X Front Accessible – 5.25in Slim Line
Expansion Slots Total (Free) :
1 (Total) / 1 (Free) X Pci Express X16 – Low-Profile
2 (Total) / 2 (Free) X Pci Express X8 – Full-Length, Full-Height
12 (Total) / 11 (Free) X Memory – Dimm 240-Pin
2 (Total) / 1 (Free) X Processor
Interfaces & Ports :
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Display / Video
4 X Usb – 4 Pin Usb Type A ( 2 Front, 2 Rear )
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
Power Device :
Device Type : Power Supply – Hot Plug
Power Redundancy L : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
