Refurbished 605876-005 Technical Specifications
HP Proliant Dl380 G7 S buy 2 X Intel Xeon Qc E5640/2.66 GHz 12 GB DDR3 SDRAM SAS/SATA DVD-RW Gigabit Ethernet 2u Rack Server.
GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 605876-005

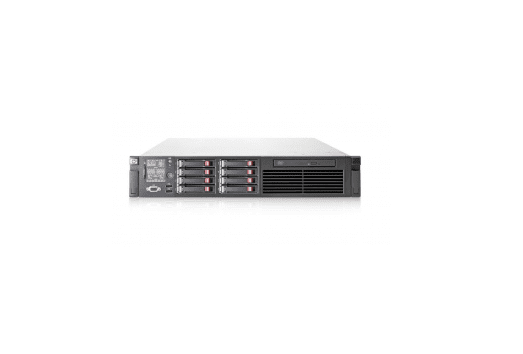

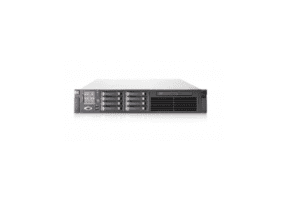

Product Name : Proliant Dl380 G7 2u Rack Mount.
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor E5640(2.66 Ghz, 12mb L3 Cache, 80w)
Multi-Core Technology : Quad-Core (4 core)
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable.
64-Bit Computing : Yes.
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb.
RAM :
Installed Size : 12 Gb
Max Supported Size : 144 Gb
Ram Technology : Ddr3 Sdram.
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin.
Features : Registered.
Configuration Features : 6 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Storage Type : Sata Dvd-Rw.
Internal Storage :
Standard: 8 Sff Sas/Sata Hdd Bays.
Storage Controller : 1 X Raid, Plug-In Card, Pci Express 2.0 X8
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 512mb Fbwc.
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 1+0, Raid 5+0, Raid 6+0
Buffer Size : 512 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb.
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter, Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : 2 X Hp Nc382i.
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support.
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DEVICE :
Power Device Type : Power Supply.
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460w Hot Plug Power Supply
