Refurbished 633405-001 Technical Specifications
HP Proliant Dl380 G7 S buy 1 X Intel Xeon Qc E5649 2.53 GHZ 6 GB RAM DDR3 SDRAM SAS SATA Dvd Rw Gigabit Ethernet 2u Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 633405-001

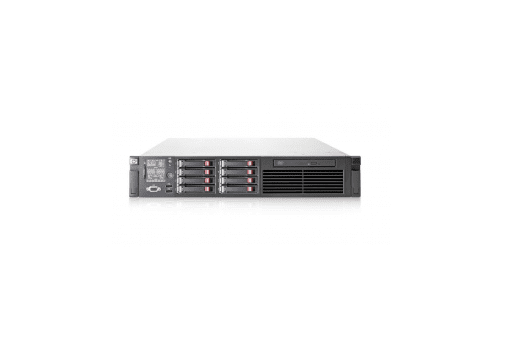

Product Name: Proliant Dl380 G7 2u Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon Processor E5649 (2.53 Ghz, 12mb L3 Cache, 80w)
Multi-Core Technology: 6 Core
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable.
64-Bit Computing: Yes.
Mainboard Chipset Type: Intel 5520
CACHE MEMORY:
Cache Memory Type: L3 Cache.
Installed Size: 12 MB.
Cache Per Processor: 12 MB.
MEMORY:
Installed Size: 6 GB.
Max Supported Size: 384 GB.
Ram Technology: DDR3 SDRAM.
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin.
Features: Registered
Configuration Features: 3 X 2 Gb
STORAGE & STORAGE CONTROLLER:
Hard Drive: None.
Optical Storage Type: Sata Dvd-Rw.
Internal Storage:
Standard: 8 Sff Sas/Sata Hdd Bays.
Storage Controller: 1 X Raid, Plug-In Card, Pci Express 2.0 X8
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 512mb Fbwc.
Raid Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 1+0, RAID 5+0, RAID 6+0
Buffer Size: 512 GB
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated.
Graphics Processor: Ati Es1000
Video Memory: 64 MB.
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking: Network Adapter, Integrated.
Ethernet Ports: 4 X Gigabit Ethernet.
Ethernet Controller: 2 X Hp Nc382i.
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support.
Compliant Standards:
IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB
IEEE 802.1P, IEEE 802.3AD (LACP)
EXPANSION / CONNECTIVITY:
Expansion Bays Total (Free):
1 ( 0 ) X Front Accessible, 5.25in Slim Line.
8 ( 8 ) X Hot-Swap, 2.5in Sff.
EXPANSION SLOTS TOTAL (FREE):
2 ( 1 ) X Pci Express 2.0 X8, Half-Length, Full-Height ( X4 Mode ).
1 ( 1 ) X Pci Express 2.0 X16, Full-Length, Full-Height ( X8 Mode ).
18 ( 16 ) X Memory, Dimm 240-Pin.
2 ( 1 ) X Processor.
POWER DEVICE:
Power Device Type: Power Supply.
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460w Hot Plug Power Supply.
DIMENSION & WEIGHT:
Height: 3.38 In.
Width : 17.54 In.
Depth : 27.25 In.
