Refurbished 643063-001 Technical Specifications

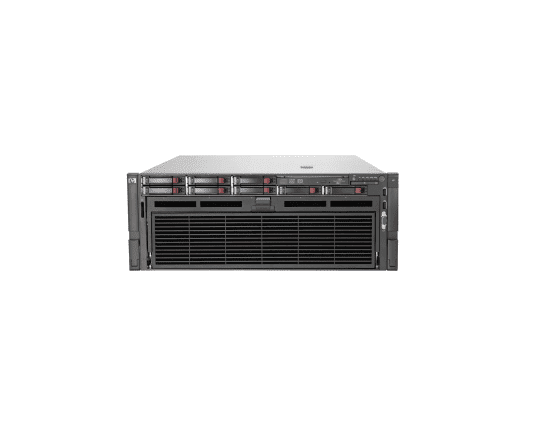

HP Proliant Dl580 G7 High Performance 4x Intel 10 core Xeon E7 4870 2.4 GHZ 128gb Ram DDR3 SDRAM SSD SATA Dvd Rom Raid 0156105060 4x Gigabit Ethernet 4U Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 643063-001
Product Name: Proliant Dl580 G7 – 4u Rack Mount (Performance Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E7-4870 / 2.4 Ghz
Multi-Core Technology: 10 Core
64-Bit Computing: Yes
Installed Qty: 4
Max Supported Qty: 4
Chipset Type: Intel 7500
CACHE MEMORY:
Type: L3 Cache
Installed Size: 120 Mb
Cache Per Processor: 30 Mb
MEMORY:
Installed Ram Size: 128 Gb / 2 Tb (Max)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered, Memory Mirroring, Online Spare Memory
Configuration Features: 16 X 8 Gb
STORAGE:
Hard Drive: None.
Optical Storage Type: Dvd-Rom – Serial SAta
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Smart Array P410i With 1gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 1 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 64 Mb
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc375i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
