65YGV DELL 9305-16e Lsi Logic External Pci Express Raid Controller

65YGV Overview

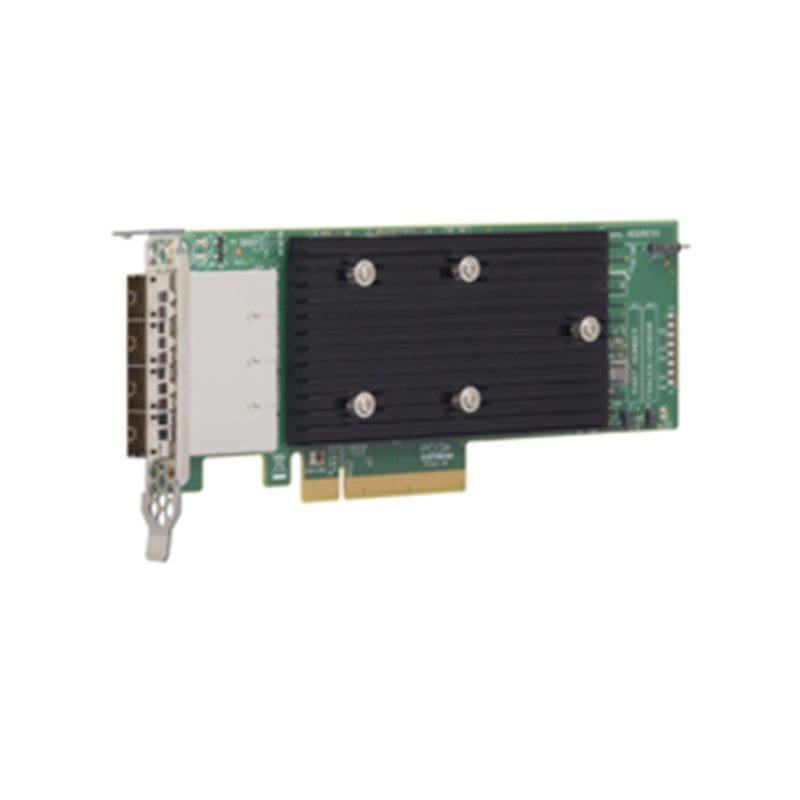

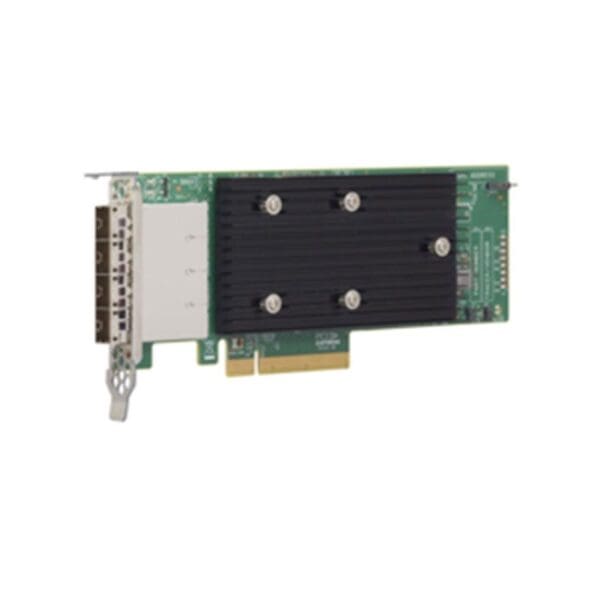

DELL 9305-16e Lsi Logic 12gb/s 16-port External Pci Express 3.0 Sas Non-raid Controller

Availability: In Stock
SKU:65YGV
Brand:

65YGV Technical Specifications

DELL 9305-16e Lsi Logic 12gb/s 16-port External Pci Express 3.0 Sas Non-raid Controller

Host Bus Type: X8 Lane Pci Express 3.0
Physical Dimensions: 2.7 X 6.6
Devices Supported: 1024 Non-raid Sas Devices Per Controller
External Connectors: 4 Mini-sas Hd Sff8644
External Connectors: 16
Operating Temperature: 0°c To 55°c
Operating Voltage: +12v +/-8%, 3.3v +/-9%
Os Support: Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical
Cable Support: Passive Copper, Active Optical
I/o Controller: Sas3216
