Home›Network Switches›Edgecore Networks Network Switch›6712-32X-O-AC-F-Us Edgecore Network 32 Port 40GBE QSFP+ AC
Edgecore-6712-32X-O-AC-F-Us

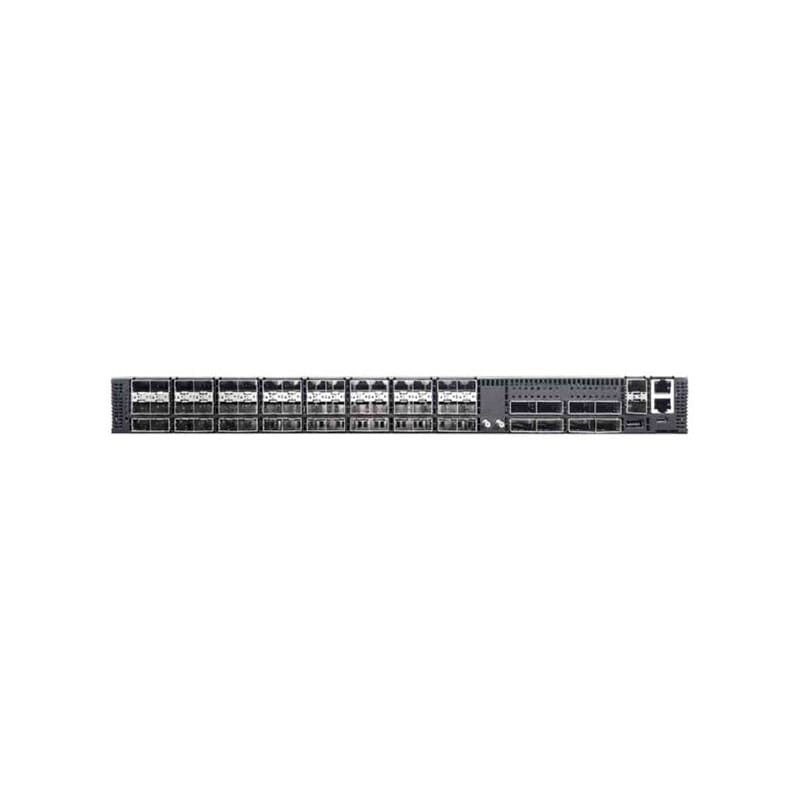

6712-32X-O-AC-F-Us Edgecore Network 32 Port 40GBE QSFP+ AC

6712-32X-O-AC-F-Us Overview

The Edgecore AS6712-32X is a Top-Rack or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across 32 x QSFP+ ports, supporting 32 x 40 GbE connections or 96 x 10 GbE + 8 x 40G connections. The AS6712-32X can be deployed as a TOR switch supporting 10 GbE or 40 GbE server connections, or as a spine switch supporting 10 GbE or 40 GbE spine interconnects. The AS6712-32X is a bare-metal switch loaded with the Open Network Install Environment (ONIE), which supports the installation ofcompatible open source and commercial Network Operating Systems for different network use cases and requirements.

$4,999

Buy Now
Availability: In Stock
SKU:6712-32X-O-AC-F-Us
Brand:

6712-32X-O-AC-F-Us Technical Specifications

Edgecore Network 32 Port 40GBE QSFP+ AC PSU Power-to-Power Airflow

Manufacturer: Edgecore
Manufacture Part Number: 6712-32X-O-AC-F-Us
Switch Ports: 32 QSFP+ fixed ports: 40 GbE or 4 x 10 GbE per port
Total switch capacity: 32 x 40 GbE
Switch Silicon: Broadcom BCM56850 Trident II 1.28 Tbps
CPU Modules: Intel Atom C2538 quad-core 2.4GHz x86 processor
8 GB SO-DIMM DDR3 RAM with ECC
16MB SPI flash
8GB NAND flash
mSATA SSD (Optional)
Forwarding Rate: 1.44 Bpps
MAC Addresses: 320K
VLAN IDs: 4K
Packet Buffer Size: 12 MB shared buffer pool
Latency (RFC2544): 600 to 720 ns cut thru
40G QSFP+ Port LEDs: Link Status, Activity
Console Port LED: Link Status
System LEDs: Diagnostic, Locator
Item Dimension (L”xW”xH”): 27 x 23 x 7
Weight: 27 lb
