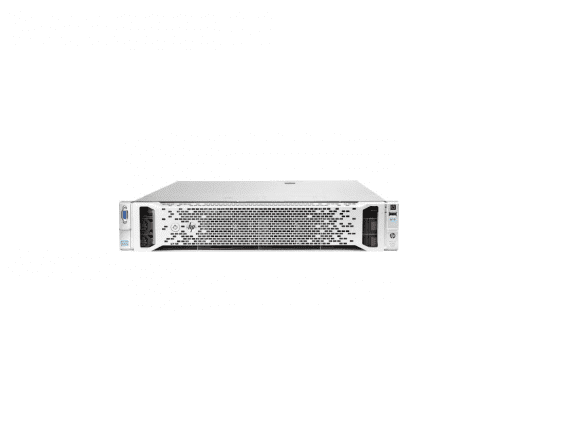

Refurbished 686785-001 HP Proliant Dl560 G8 Base Models 2x Intel Xeon

Refurbished 686785-001 Overview

HP Proliant Dl560 G8 Base Models 2x Intel Xeon 6 Core E5 4610 2.4GHz 32GB Ddr3 Sdram Hot Plug 5sff Sas Sata Hdd Bays Matrox G200 Smart Array P420i 1gb Fbwc.

$6,245

Buy Now
Availability: In Stock
SKU:686785-001-RF
Brand:

Refurbished 686785-001 Technical Specifications

HP Proliant Dl560 G8 Base Models 2x Intel Xeon 6 Core E5 4610 2.4GHz 32GB Ddr3 Sdram Hot Plug 5sff Sas Sata Hdd Bays Matrox G200 Smart Array P420i 1gb Fbwc.

GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 686785-001
Product Name: Proliant Dl560 Gen8 2u Rack Mount Base Model
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-4610 / 2.4ghz
Processor Slots : Fclga2011
Multi-Core Technology : 6 Core
64 Bit Computing : Yes
Installed Qty : 2
Max Supported Qty: 4
Upgradability : Upgradable
Processor Main Features : Intel Quickpath Interconnect
Chipset Model : Intel C600
Data Bus Speed : 1333 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 30 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Ram Size: 32gb (4x8gb)
Maximum Size: 1.5tb (48x 32gb Rdimm @1600mhz)
Technology: Ddr3 Sdram- Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specifications Compliance: Pc-3 1280
Form Factor: Dimm 240-Pin
Number Of Total Memory Slots: 48 Ddr3 Slots
Features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
Ram Supported:
32gb (4x 8gb)
752gb (46x16gb, 1x4gb)
1.5tb (48 X 32gb)
STORAGE & STORAGE CONTROLLERS :
Hard Drives : None Ship Standard
Internal Storage Standard : 5 Sff Sas Hdd 5 Bays, Includes 3 Sff Hard Drive Blanks
Optical Drive Bay : Optional External Usb Optical Drive
(Mobile Usb Dvdrw Optical Drive)
Controller Interface Type : Sata-600 / Sas 2.0
Storage Controller Name: Hp Smart Array P420i/1gb Fbwc (Raid 0/1/1+0/5/5+0)
CARD READER :
Memory Card Reader: Yes
Supported Flash Memory Cards: Secure Digital (Sd) Card
DISPLAY & GRAPHICS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller(S): Hp Ethernet 1gb 4-Port 331flr Adapter
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
POWER DESCRIPTION :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 1200 Watt
80 Plus Certification : 80 Cs Platinum Plus
