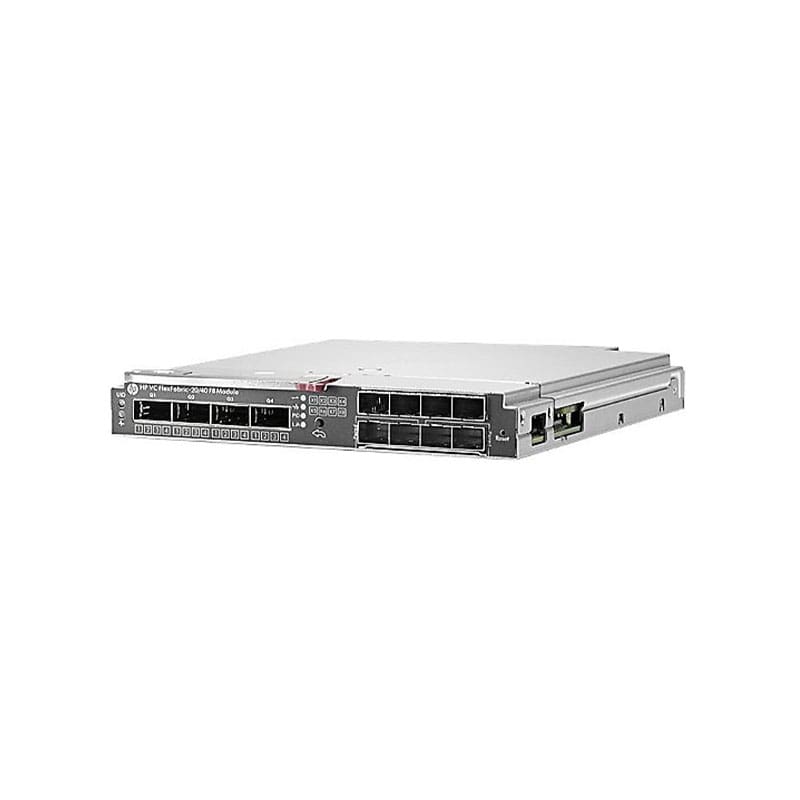

691367-B21 HPE Virtual Connect FlexFabric-20/40 F8 Module switch managed plug-in module
691367-B21 Overview
HPE Virtual Connect FlexFabric-20/40 F8 Module switch managed plug-in module. This HP Virtual Connect FlexFabric-20/40 F8 Module is one of the simplest, most converged and flexible ways to connect virtualized server blades to your data or storage network. It reduces up to 95% of network sprawl at the server edge with one device that converges all traffic inside enclosures and directly connects to LANs and SANs. Based on open standards with 40GbE uplinks and 20GbE downlinks it addresses growing bandwidth needs in private and public cloud environments in a cost effective manner.
$169
691367-B21 Technical Specifications
HPE Virtual Connect FlexFabric-20/40 F8 Module switch managed plug-in module
Manufacturer: HPE
Brand: HPE
Type: Networking
Module-Type: Expansion Module 16 Ports
Technical Information
Enclosure Type : Plug-In Module
Ports : 16 X 10/20GB Ethernet (Midplane Downlink) + 2 X 20GB Ethernet (Cross Connect Link) + 4 X 40 Gigabit Qsfp+ (Uplink) + 8 X 10 Gigabit Sfp+ (Uplink)
Performance
Fabric Throughput : 1.2 TBPS
Capacity : Network Access Groups : 128
Jumbo Frame Support : 9216 Bytes
Fibre Channel : Fc-Fg, Fc-Fla, Fc-Gs, Fc-Gs-2, Fc-Gs-3, Fc-Ph, Fc-Ph-2, Fc-Ph-3, Fc-Vi, Fc-Bb-5
Routing Protocol : Igmpv2, Igmp, Igmpv3
Remote Management Protocol : Snmp 1, Snmp 2, Https, Smi-S, Cli
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Ldap
Expansion / Connectivity
Interfaces : 16 X 10/20gbit Lan – Midplane Downlink 2 X 20gbit Lan
