698532-B21 Technical Specifications

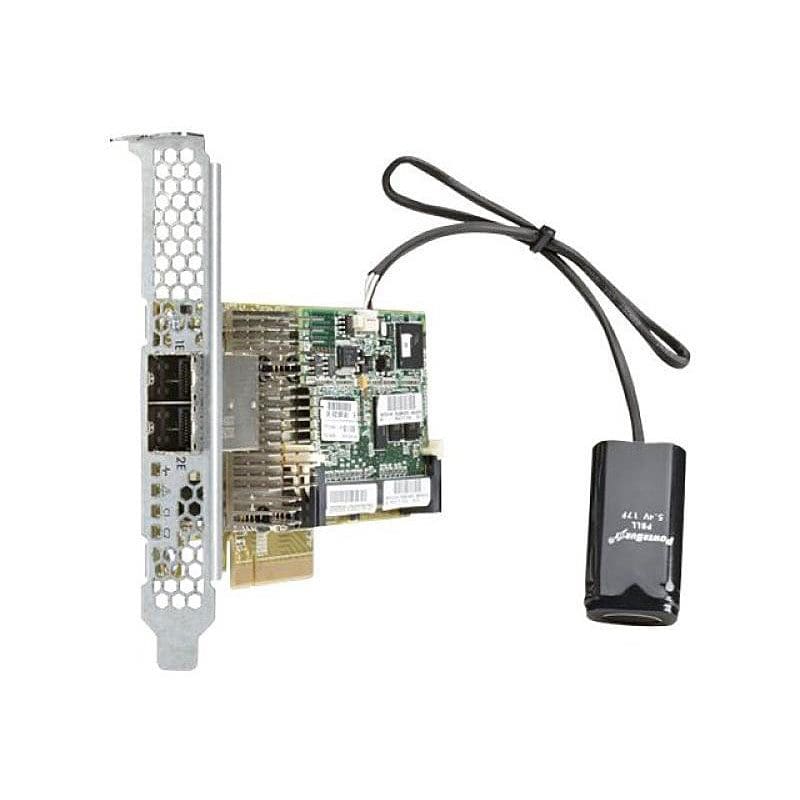

HP Smart Array P431 4GB Cache 2-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card FBWC Kit
Manufacturer Part Number 698532-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 6
ADG
60
1
1 ADM
Data Backup Type Flash Backed Cache
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (External) 2
Physical Characteristics
Height 7.5″
Width 9.5″
Thickness 2.2″
Form Factor Plug-in Card
Weight (Approximate) 15.87 oz
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification REACH
