6P6G-PCIE-SATA-CARD Technical Specifications

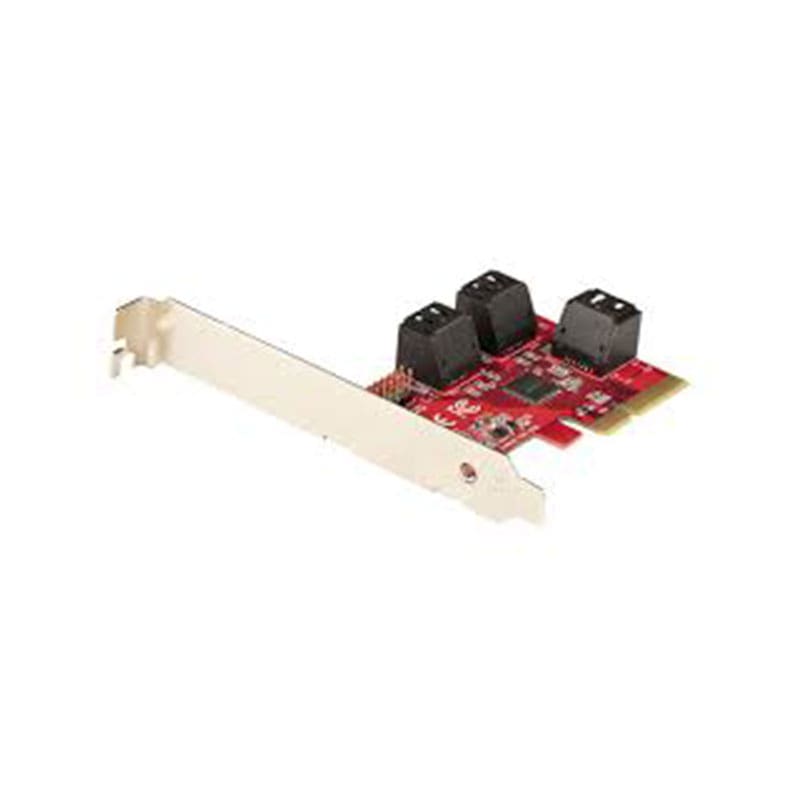

StarTech SATA PCIe Card, 6 Ports SATA Expansion Card, 6Gbps PCI Express SATA Card
Manufacturer
StarTech.com
Brand
StarTech.com
Product Line
StarTech.com
Model
SATA PCIe Card, 6 Port PCIe SATA Expansion card, 6Gbps SATA Card with Low Profile Bracket, Stacked SATA Connectors, ASM1166 Non-Raid SATA Controller Card – PCI Express to SATA Converter (6P6G-PCIE-SATA-CARD)
Packaged Quantity
1
General
Product Type
Storage controller
Processor
Processor Number
ASM1166
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x4
Low Profile
Low profile
Data Transfer Rate
6 Gbit/s
Interface
SATA 6Gb/s
Supported Devices
Hard drive, Solid state drive
Max Storage Devices Qty
6
Interface Provided
Interfaces
6 x SATA 6Gb/s – SATA (internal)
Power Device
Type
None
System Requirements
OS Required
Apple MacOS X 10.10 – 11, Linux 2.6.32 or later, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Miscellaneous
Color
Red
Color Category
Red
Included Accessories
Low-profile bracket
Compliant Standards
RoHS, WEEE
Features
4Kn drive compatible, ATAPI support, Bootable, S.M.A.R.T. support, TRIM support
Dimensions & Weight
Width
0.6 inch
Depth
3.3 inch
Height
2.1 inch
Weight
2.65 ounce
Dimensions & Weight (Shipping)
Shipping Width
6.7 inch
Shipping Depth
5.6 inch
Shipping Height
1.2 inch
Shipping Weight
4.23 ounce
Service & Support
Type
2-year warranty
Service & Support Details
Service & Support
Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
185 degree Fahrenheit
Humidity Range Operating
20 – 80% RH
