700417462 Avaya IP500 Universal Pri 2 Daughter Card

700417462 Technical Specifications

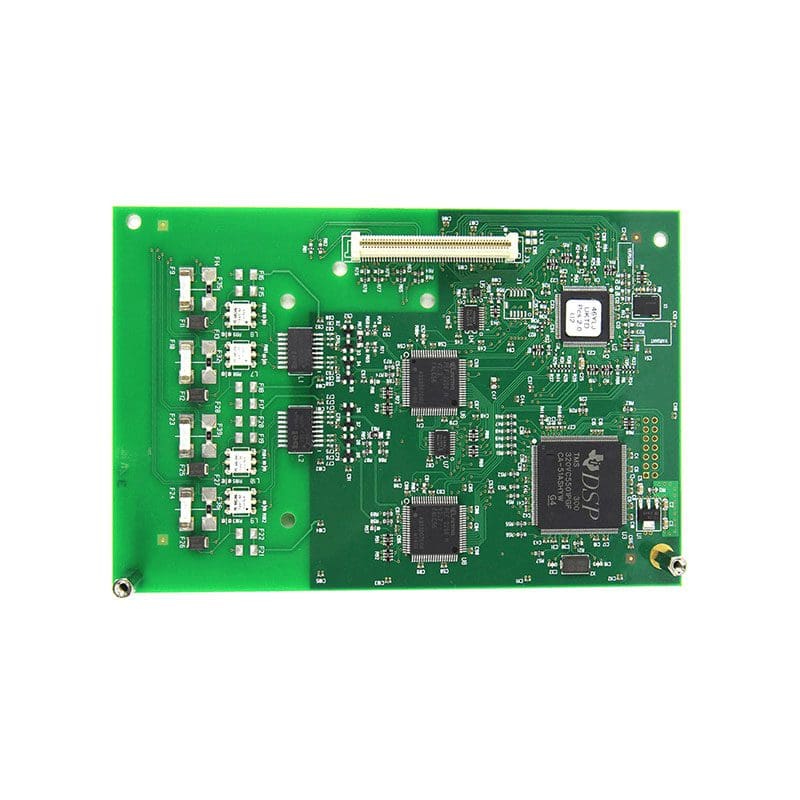

Avaya IP500 Universal Pri 2 Daughter Card

General Information:
Daughter Board That Installs On IP500 Base Card
Ports/Channels – 2 Pri Trunk Port. Connections Via Port 9 Of The Host IP500 Base Card
Supports The Following Pri Modes:
T1 Robbed Bit (24B Channels Per Port) T1 Pri (23B+D Channels Per Port)
E1 Pri (30B+D Channels Per Port)
E1r2 Pri (30B Channels Per Port)
Initially Supports 8 Unlicensed B-Channels On Each Port
Additional Channels Are Activated By Ip500 Universal Pri Licenses
Maximum – 4 Per IP500 Control Unit
Compatibility
Compatible With Avaya IP500 Digital Station 8, IP500 Combination ATM, IP500 VCM 32/64, Ip500 Analog Phone 2/8
Compatible With IP Office R4.1 Or Higher
