Refurbished 704159-001 Technical Specifications

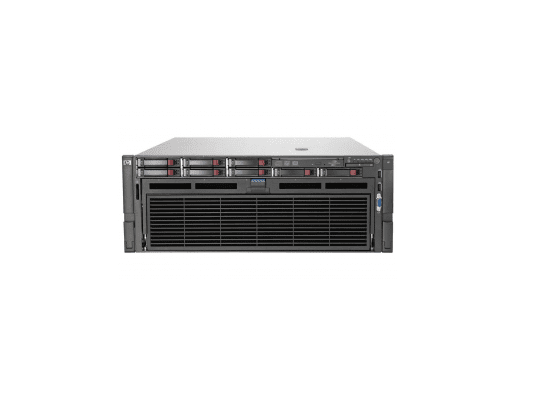

HP Proliant DL585 G7 4X AMD Optern 16-Core 6380/2.5GHz 128GB DDR3 SDRAM DVD Drive Gigabit Ethernet 4U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 704159-001
Product Name : Proliant Dl585 Gen7 4u Rack Mount
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 16 Core 6380/2.5GHz
Installed Qty : 4
Max Supported Qty : 4
Upgradability : Upgradable
64-Bit Processing : Yes
Processor Core : Twelve-Core
Chipset Type : Amd Sr5690/Sp5100
Bus Speed : 6400 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 128 Gb
Max Supported Size : 512 Gb
Technology : Ddr3 Sdram, Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
Configuration Features : 8 X 4 Gb
STORAGE & STORAGE CONTROLLERS :
Hard Drive : None
Optical Drive : Hp Slim Sata Dvd Optical Drive
Internal Storage : Up To 4tb Of Internal Storage
Storage Controller Type : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Attached Scsi 2
Storage Controller Name : Smart Array P410i With 512mb Fbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 512 Mb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 32 Mb
1600x1280x64k 16m Color
NETWORKING :
Networking : Network Adapter, Pci Express X4, Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : Hp Nc375i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards :
Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
Ieee 802.1p, Ieee 802.3ad (Lacp)
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free) :
2 ( 1 ) X Front Accessible, 5.25in Slim Line
8 ( 8 ) X Hot-Swap, 2.5in Sff
Expansion Slots Total (Free) :
48 ( 40 ) X Memory, Dimm 240-Pin
4 ( 2 ) X Processor.
2 ( 2 ) X Pci Express 2.0 X16
3 ( 2 ) X Pci Express 2.0 X8
Interfaces :
1 X Serial, Rs-232, 9 Pin D-Sub (Db-9)
1 X Keyboard, Generic, 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse, Generic, 6 Pin Mini-Din (Ps/2 Style)
4 X Hi-Speed Usb, 4 Pin Usb Type A.
4 X Network.
POWER DEVICE :
Power Device Type : Power Supply, Hot-Plug
Power Redundancy : Yes.
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 4
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
DIMENSION & WEIGHT :
Width : 19 In
Depth : 27.6 In
Height : 6.9 In
Weight : 66 Lbs
