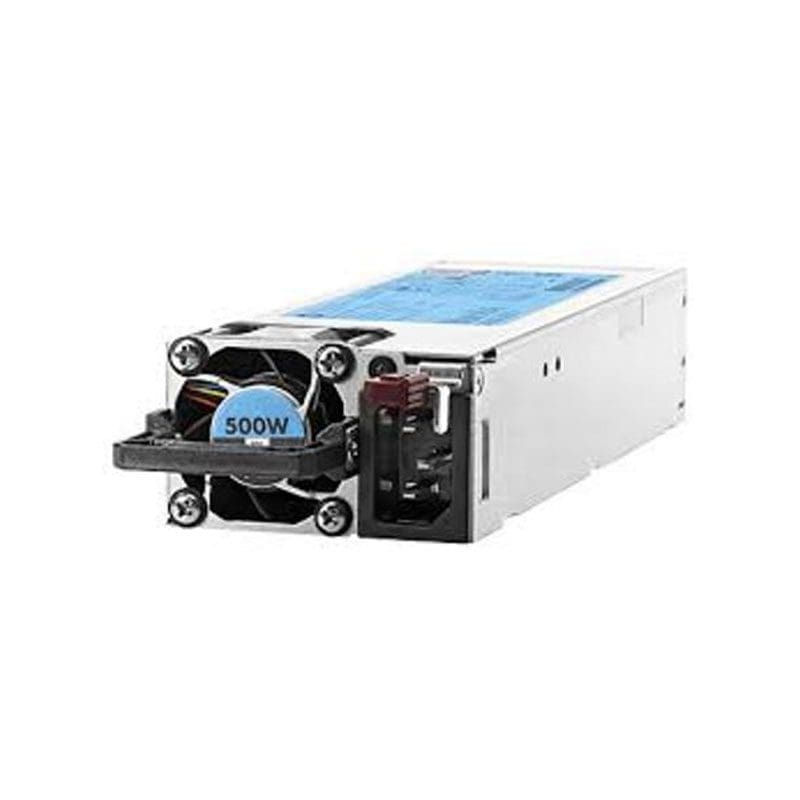

723594-001 HP 500-Watts Flex Slot Platinum 80Plus

723594-001 Technical Specifications

HP 500-Watts Flex Slot Platinum 80Plus

Manufacturer HP
Manufacturer Part # 723594-001
Performance
Connectors Main Connector
Input Current 5.8 A
Input Frequency 50-60 Hz
Input Voltage 100-240 V
Maximum Power 500 Watts
Output Voltage +12V @ 42A
Product Type Power Supply Unit (PSU)
Specifications:

Depth: 8.9 in
Height: 1.6 in
Weight: 32.1 oz
Width: 2.7 in
Humidity Range Operating: 5 – 95% (non-condensing)
Max Operating Temperature: 131 °F
Min Operating Temperature: 41 °F
80 PLUS Certification: 80 PLUS Platinum
Efficiency: 94%
Form Factor: Plug-in module
Frequency Required: 50 – 60 Hz
Power Capacity (VA): 564 VA
Power Provided: 500 Watt
Power Supply Compatibility: PC/Server
Specification Compliance: Flex Slot
Voltage Required: AC 100-240 V
