726793-B21 Technical Specifications

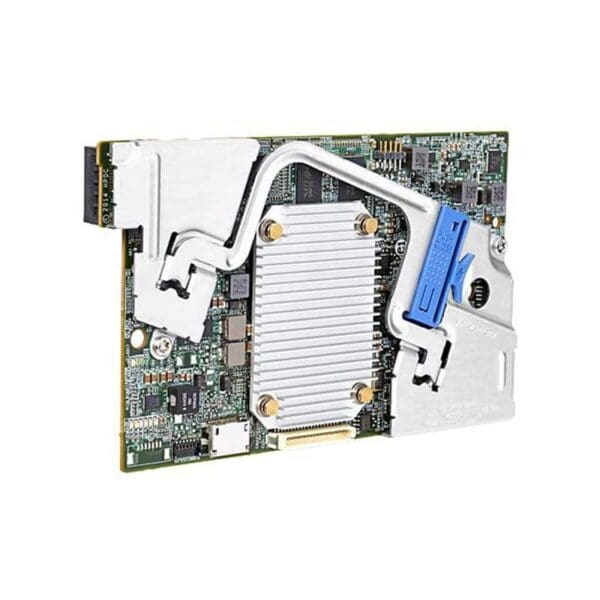

HP Smart Array P246br 1GB Cache 4-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10 Controller Card FBWC Kit
Manufacturer Part Number 726793-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
6
10
Data Backup Type Flash Backed Cache
Memory
Cache Memory 1 GB
Interfaces/Ports
Total Number of SAS Ports 4
Number of SAS Ports (Internal) 4
SAS Connector Details 1
Physical Characteristics
Height 3.6″
Width 5.3″
Thickness 1.2″
Form Factor Plug-in Module
Miscellaneous
Platform Supported PC
Linux
