Refurbished 732024-001 Technical Specifications

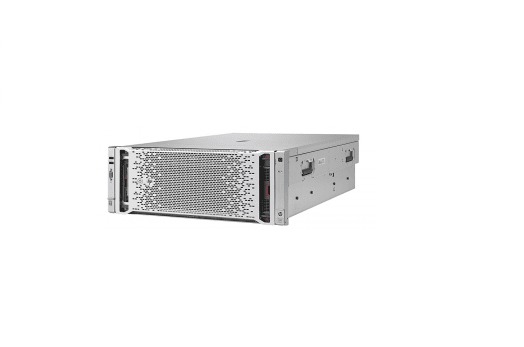

HP Proliant Dl560 Entry Model G8 2x Xeon E5-4603v2/2.2GHz Quad Core 16GB Ddr3 Sdram HP Ethernet 1GB 4 Port 331flr Adapter Zm 5-Sff Hot Plug Sas/Sata Hdd Bays 1x 1200w Ps 2u Rack Server.
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 732024-001
Product Name: Proliant Dl560 Gen8 2u Rack Mount (Entry Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-4603v2 /2.2ghz
Multi-Core Technology : Quad-Core ( 4 core )
64 Bit Computing : Yes
Installed Qty : 2
Max Supported Qty: 4
Upgradability : Upgradable
Chipset Model : Intel C600
Processor Main Features : Intel Quickpath Interconnect
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 20 Mb
Cache Per Processor : 10 Mb
MEMORY :
Installed Size : 16 Gb / 768 Gb (Max)
Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3l-12800
Form Factor : Dimm 240-Pin
Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Low-Voltage, Hp Smartmemory
Configuration Features : 2 X 8 Gb
STORAGE & STORAGE CONTROLLERS :
Hard Drives : None Ship Standard
Type : 1 X Raid – Integrated – Pci Express 3.0 X8
Controller Interface Type : Sata-600 / Sas 2.0
Storage Controller Name: Hp Smart Array P420i/Zm
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS :
Type : Integrated
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Plug-In Card
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
