749974-B21 Technical Specifications

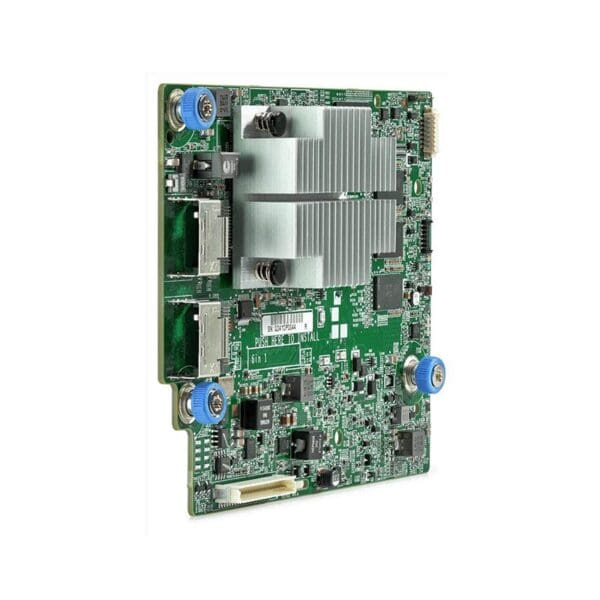

HP Smart Array P440ar 2GB Cache Single Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card
Manufacturer Part Number 749974-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 1
5
6
10
50
60
1 ADM
10 ADM
0
Data Backup Type Flash Backed Cache
Memory
Cache Memory 2 GB
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Physical Characteristics
Height 5.3″
Width 1.2″
Depth 4.1″
Form Factor Plug-in Card
Weight (Approximate) 15.87 oz
