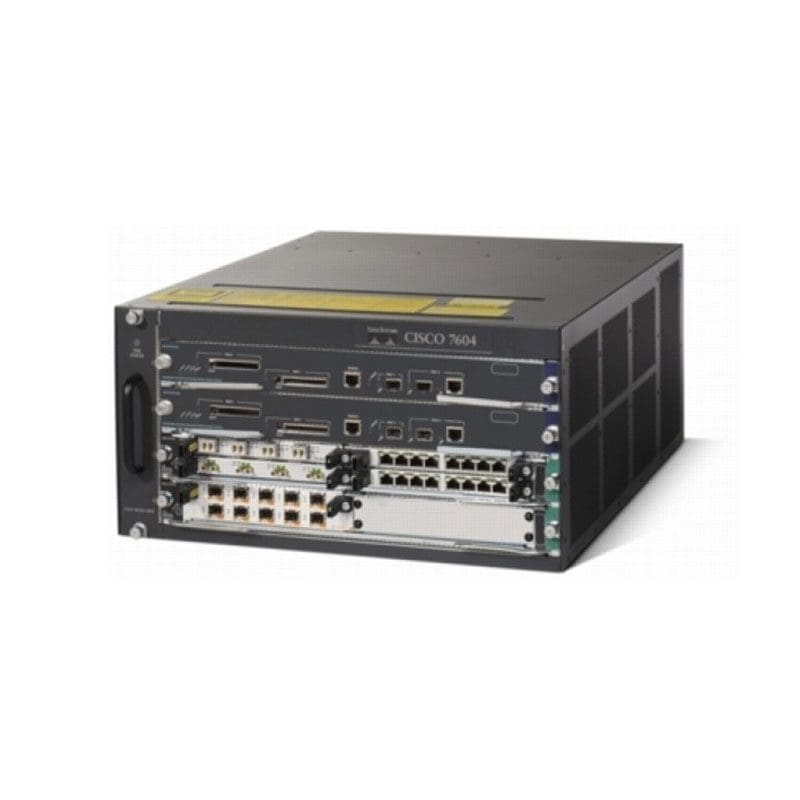

7604-RSP7C-10G-R Cisco 7604 Router Bundle

SKU: 7604-RSP7C-10G-R Categories: , Tags: , ,

7604-RSP7C-10G-R Overview

The Cisco 7604 Router is a compact, high-performance router designed in a 4-slot form factor for deployment at the network edge, where robust performance and IP/Multiprotocol Label Switching (MPLS) services are necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7604 also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.

7604-RSP7C-10G-R Technical Specifications

Cisco 7604 Chassis,4-slot,Red System,2RSP720-3C-10GE,2PS

General
Device Type: Router – with 2 x Cisco 7604 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE)
Enclosure Type: Desktop, rack-mountable – modular – 5U
Product Type: Router Chassis
Router Bundle
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity ACL rules: 128000 ¦ NetFlow entries: 128000
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM, GRE
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN
Compliant Standards: IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00
RAM: 4 GB
Flash Memory: 1 GB
Expansion / Connectivity
Interfaces 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 2 x console – RJ-45 ¦ 4 x SFP (mini-GBIC)
Expansion Slots 4 (total) / 2 (free) x expansion slot ¦ 4 (total) / 2 (free) x CompactFlash Card – type II
Power
Power Device Internal power supply – hot-plug
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Miscellaneous
Mounting Kit Included
MTBF 7 years
Dimensions & Weight
Width 17.5 in
Depth 21.7 in
Height 8.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
