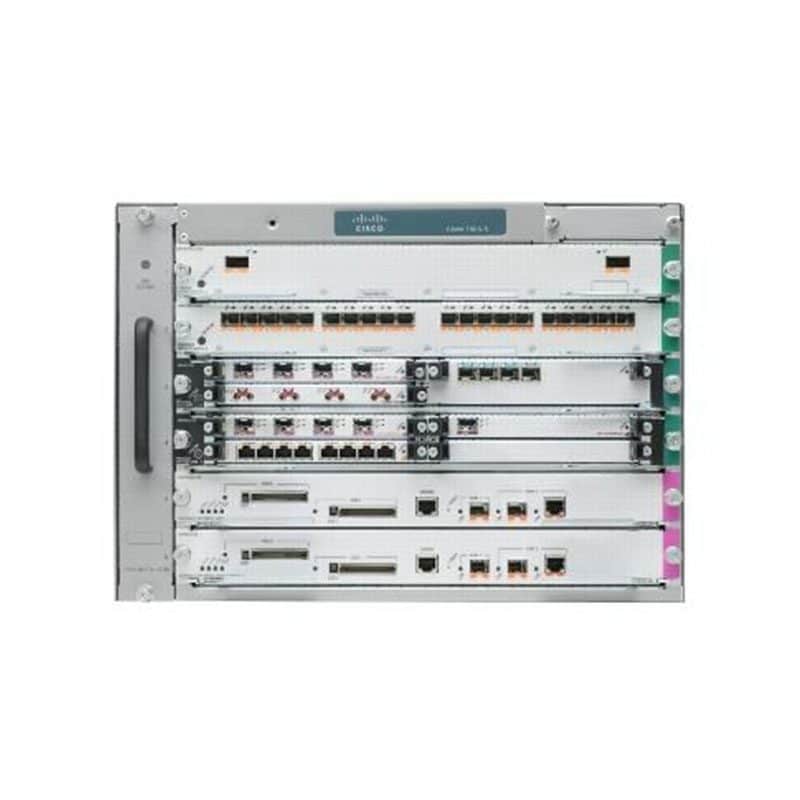

Refurbished 7606S-RSP720CXL-R Technical Specifications
Cisco 7606S Chassis,6-slot,Redundant System,2RSP720-3CXL,2PS
General
Device Type: Router – with 2 x Cisco 7606 Series Route Switch Processor 720 with PFC-3CXL
Enclosure Type: Rack-mountable – modular – 7U
Product Type: Router Chassis
Router Bundle
Model 7606S
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Performance IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
Capacity IPv4 routes: 1000000 ¦ IPv6 routes: 512000 ¦ NetFlow entries: 256000 ¦ ACL rules: 256000
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, Bidirectional PIM
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards IEEE: 802.1x, NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 3260, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, FCC CFR21 Part 1040, IEC 60825-1, EN 60825-1
Processor: PowerPC 1.2 GHz
RAM: 6 GB (installed) / 12 GB (max)
Flash Memory: 1 GB
Expansion / Connectivity
Interfaces 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 2 x console – RJ-45 ¦ 4 x SFP (mini-GBIC)
Expansion Slots 6 (total) / 4 (free) x expansion slot ¦ 6 (total) / 4 (free) x CompactFlash Card – type II
Installed Modules Qty (Max) 2 (installed) / 6 (max)
Power
Power Device Internal power supply – hot-plug
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit Included
MTBF 400,000 hours
Dimensions & Weight
Width 17.2 in
Depth 21.5 in
Height 12.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
