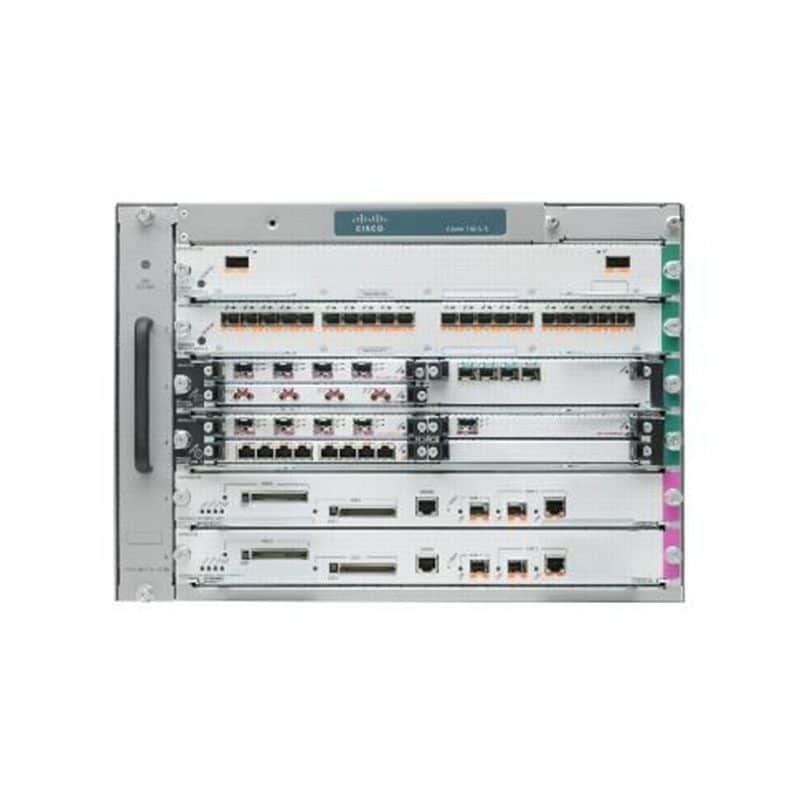

7606S-RSP7XL-10G-R Cisco 7606S Chassis Bundle

7606S-RSP7XL-10G-R Technical Specifications

Cisco 7606S Chassis Bundle

Manufacturer: Cisco
Manufacturer Part Number: 7606S-RSP7XL-10G-R
Device Type: Router
Enclosure Type: Rack-mountable
Model 7606S
Product Type: Router Chassis
Router Bundle
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Expansion / Connectivity
Expansion Slots:/ 6 (total) / 4 (free) x expansion slot ¦ 4 (total) / 4 (free) x CompactFlash Card – type II
Installed Modules Qty (Max): 2 (installed) / 6 (max)
Power Device: Internal power supply – hot-plug
Power Redundancy: Yes
Installed Qty: 2 (installed) / 2 (max)
Rack Mounting Kit Included
Width: 17.2 in
Depth: 21.5 in
Height: 12.2 in
Weight: 40.79 lbs
