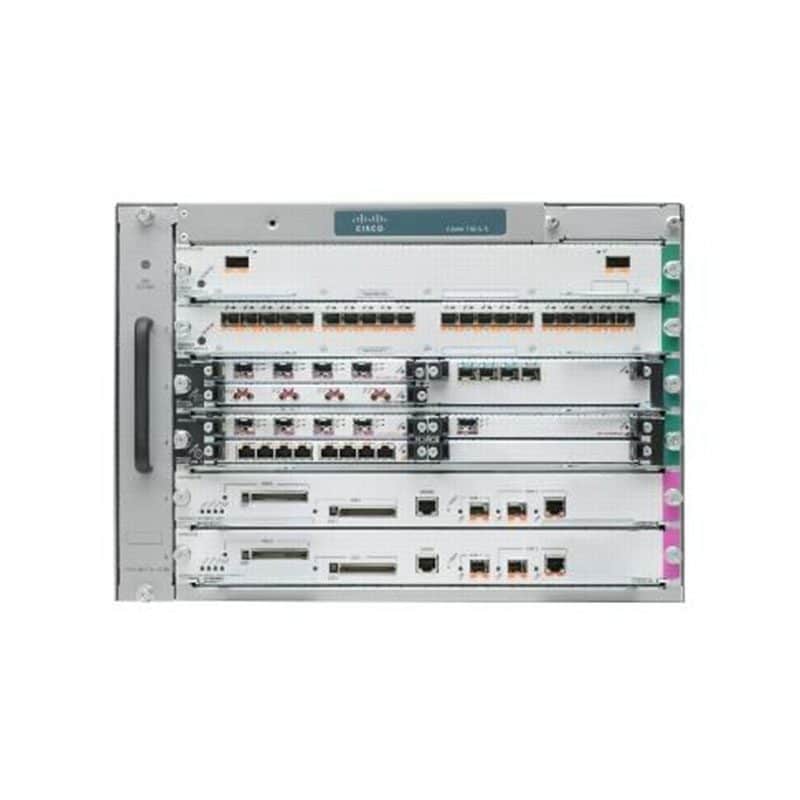

7606S-S32-10G-B-P Technical Specifications
Cisco 7606S Chassis,6-slot,SUP32-2X10GE-3B,PS
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 7600
Product Model: 7606S-S32-10G-B-P
Product Name: 7606S-S32-10G-B-P Router Chassis
Product Type: Router Chassis
Cisco 7606S-S32-10GBP Media & Performance
Forwarding/Filtering Rate: 240Mpps
Routing Throughput: 480Gbps
I/O Expansions
Number of Expansion Slots: 6
Expansion Slots: (6 Total /5 Free /1 Populated) Expansion Slot
Management & Protocols
Management:
CLI
SNMP
CLI
SNMP
Software
Operating System:
Cisco IOS 12.2(18)SXE
Power Description
Input Voltage: 220V AC
Input Voltage Range: 48V DC to 60V DC
Input Voltage Range: 208V AC to 240V AC
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 7U
Form Factor: Rack-mountable
Dimensions: 12.2 Height x 17.25 Width x 21.5 Depth
Weight: 40.8 lb
