761874-B21 Technical Specifications

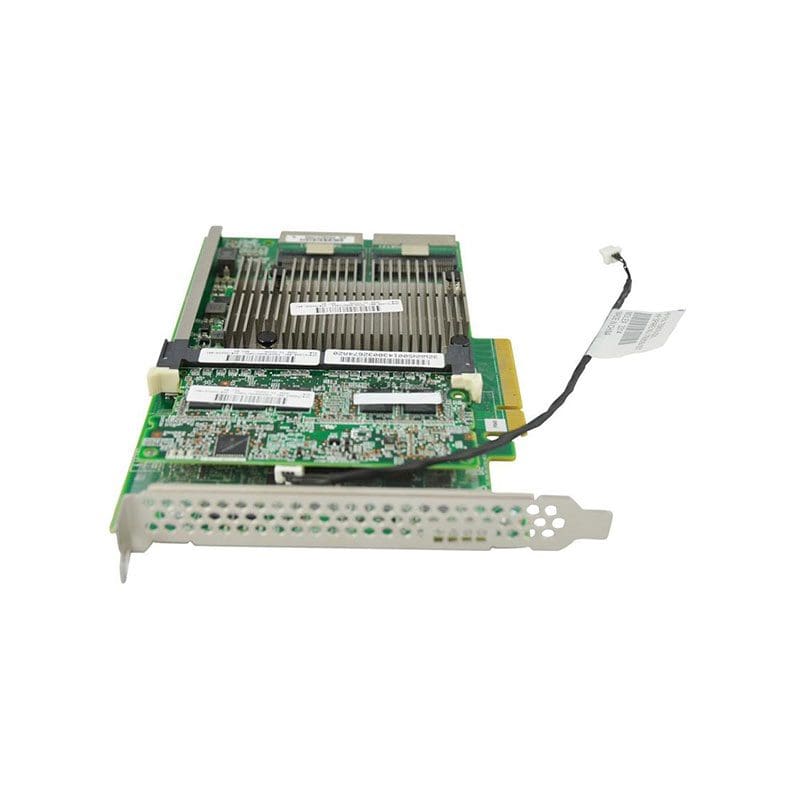

HP Smart Array P840 4GB Cache Dual Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 0/1/5/6/10/50/60 RAID Controller Card
Manufacturer Part Number 761874-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
1 ADM
10 ADM
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Physical Characteristics
Height 4.4″
Width 0.6″
Depth 6.6″
Form Factor Plug-in Card
