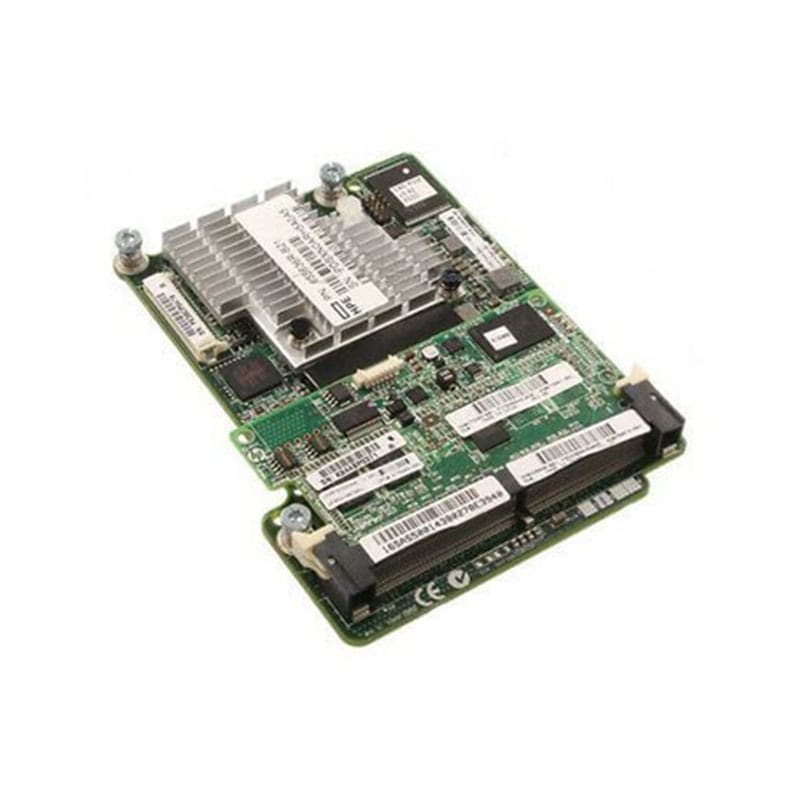

762001-001 HPE Smart Array P721m SAS Controller Card With 2GB FBWC
762001-001 Overview
The HPE Smart Array P721m SAS Controller Card with 2GB FBWC (762001-001) provides the following key features and benefits:
High-Performance Storage: The HPE Smart Array P721m provides high-speed SAS connectivity for increased performance, making it ideal for demanding storage applications.
Flash-Backed Write Cache (FBWC): The 2GB FBWC improves performance and protects data in the event of a power loss or system failure.
$619
762001-001 Technical Specifications
HPE Smart Array P721m SAS Controller Card With 2GB FBWC
Brand: HPE
MPN : 762001-001
Type: Controller
Sub-Type: SAS Controller
Form Factor: Half Height, Half Length (HHHL)
Interface: PCI Express 3.0 x8
Data Transfer Rate: Up to 6 GB/s per port
Number of Ports: 8 internal SAS ports (4 lanes per port)
Storage Connectivity: SAS and SATA
RAID Level Support: 0, 1, 10, 5, 50, 6, 60
Cache Memory: 2GB Flash-Backed Write Cache (FBWC)
Maximum Physical Drives Supported: Up to 512 (dependent on server configuration)
RAID Performance: Up to 460,000 IOPs
Operating System Support: Microsoft Windows, Red Hat Linux, SUSE Linux, VMware ESX/ESXi
