Refurbished 765819-001 Technical Specifications

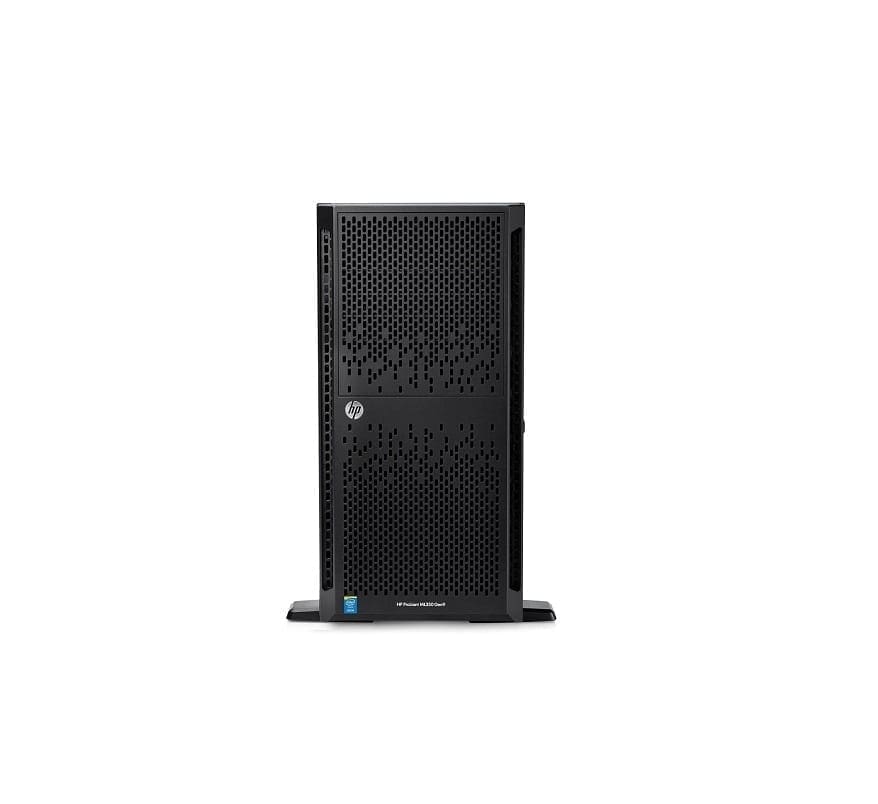

HP Proliant Ml350 G9 Entry Model 1x Intel Xeon E5-2609v3/1.9GHz Hexa-Core, 8GB Ddr4 Sdram, HP Dynamic Smart Array B140i, 4x Gigabit Ethernet, 1x 500w Ps, 5u Tower Server.
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 765819-001
Product Name: Proliant Ml350 Gen9 5u-Tower Server (Entry Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2609v3 /1.9ghz
Multi-Core Technology : Hexa-Core (6 Core)
64 Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Model : Intel C610
CACHE MEMORY :</b
Cache Memory Type : L3 Cache
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
MEMORY :
Installed Size: 8gb/384gb (Max)
Technology: Ddr4 Sdram – Advanced Ecc Registered
Memory Speed: 1600 Mhz
Memory Specifications Compliance: Pc4-17000
Form Factor: Dimm 288-Pin
Memory Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1x 8 Gb
RAM SUPPORTED:
PC4-17000 – 768 GB – Load-Reduced
PC4-17000 – 384 GB – Registered
STORAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd
Storage Controller Type : 1 X Raid – Plug-In Card – Pcie Express 3.0 X8
Controller Interface Type : Sata-600
Storage Controller Name : Hp Dynamic Smart Array B140i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
DISPLAY & GRAPHICS :
Graphics Type : Integrated
Graphics Controller Model : Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking Type : Integrated
Ethernet Ports : 4x Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Device Type: Power Supply Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1(With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/220 V ( 50/60 Hz )
Power Provided: 500 Watt
80 Plus Certification : 80 Plus Platinum.
